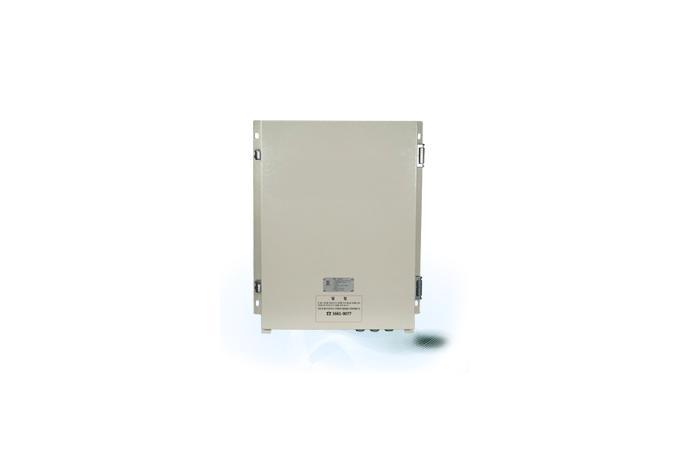

Optical Repeater
Model Name
USOR10
Series
Optical Repeater
Data
-
Manufacturer information
provider logo
Samji Electronics

Electronic parts manufacturer, Communication, Digital, PDA, Online game

Problem with product info?
Update request
Manufacturer
Samji Electronics
Brand
-
SKU
42378
Product Name
Optical Repeater
Model Name
USOR10
Size
-
Weight
-
Product Details

1. Overview

An integrated optical repeater (800㎒/1.8㎓) being used to provide smooth service to the service area with weak signal of CDMA2000 1x/EVDO and LTE.


2. Characteristics

① Door Open structure(Upgrade is available through module replacement)
②  PSU & Battery are installed
③  10 CASCADE is available
④  Rotating LED Lamp is installed : improved convenience of night work
⑤  The application of an automatic locking latch mechanism & backing locking installation



3. Specification

Order Item Standard
1 Frequency [MHz] FWD 884~894
RVS 839~849
2 Gain FWD 52dB(2dB/65dB)
RVS 45dB(5dB/55dB)
3 Input range FWD ~ +10dBm
RVS ~ -65dBm
4 Max. output FWD 40dBm/Total
RVS -20dBm/Total
5 Heat dissipation Natural Convection
6 Operating temperature -10℃ ~ +50℃
7 Storage temperature -20℃ ~ +60℃
8 Humidity 5~85% (Non-condensing)
9 SIZE(mm) 450(W) x 555(H) x 100(D)
