1. Overview

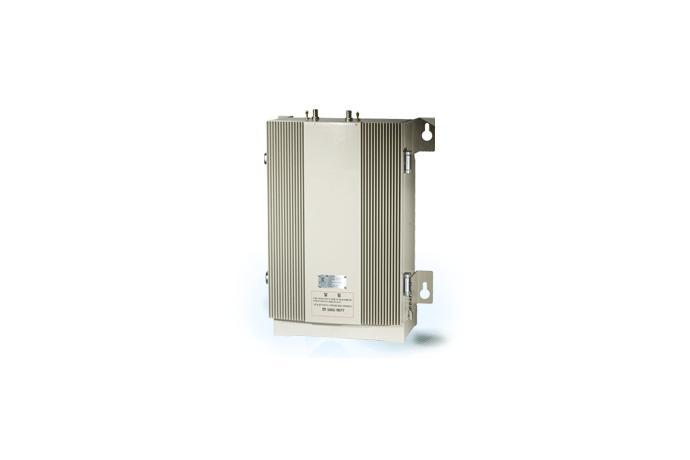

An indoor intermediary system that amplifies signal using wireless RF to expand service providing area and to provide service to weak signal area.
2. Characteristics
① A dual band repeater that support 2G(CDMA,EVDO)+4G(LTE).
② Highly efficient when modulating signal is amplified due to the power amplifier with outstanding linearity and power efficiency
③ RF interface within a country uses wireless Air interface connection.
④ Designed to have doors and warranty service is available for Modular units.
⑤ The housing does have FAN and use natural cooling method.
3. Standard
Order | Item | CDMA | LTE | LTE | |
1 | Frequency range [MHz] | FWD | 1860~1870 | 884~894 | 2110~2120 |
RVS | 1770~1780 | 839~849 | 1920~1930 | ||
2 | Gain | FWD | 57dB | 55dB | 58dB |
RVS | 45dB | 45dB | 45dB | ||
3 | Input range | FWD | +5dBm/Total | +10dBm/Total | +1dBm/Total |
RVS | -65dBm/Total | -65dBm/Total | -65dBm/Total | ||
4 | Max. output | FWD | 44.7dBm/Path | 43dBm/Path | 46dBm/Path |
RVS | -20dBm/Path | -20dBm/Path | -20dBm/Path | ||
5 | Heat dissipation | ||||
6 | Operating temperature | ||||
7 | Storage temperature | -40℃ ~ +70℃ | |||
8 | Humidity | 5~95% (Non-condensing) | |||
9 | SIZE(mm) | 290(W) x 607(H) x 341(D) |
