1. Overview

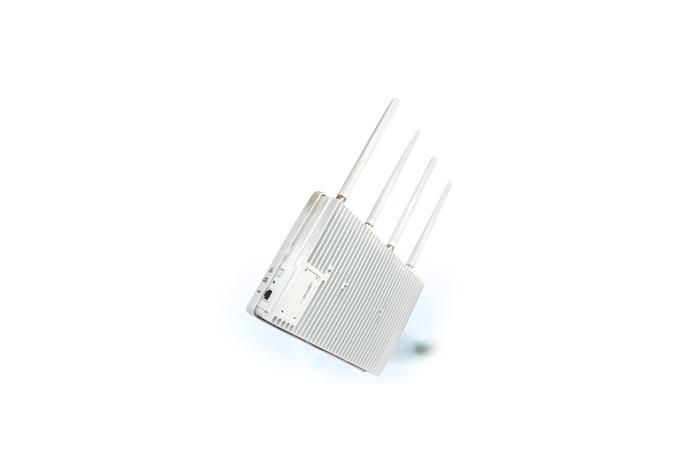

The subminiature repeater used to solve the problem with the area with weak signal inside of the building with internet installed.
2. Characteristics
① Each carrier provide bandwidth of maximum 10 MHz and high speed bulk packet service.
② Easy instillation due to its lightness (less than 3kg) and built in PCB antenna .
③ An ultra-base station providing easy instillation and no limitation for instillation place
④ The structure designed for efficient heat release even without the cooling system.
⑤ Perform DL OFDMA/UL SC-FDMA channel process which support LTE standard physical layer
3. Specification
Order | Item | System Standard | Notes |
1 | LTE frequency | 839~849 (MHz)/ 884 ~ 894 (MHz) | BAND5 |
2 | Max. output | LTE = 17dBm/path | LTE & WiFi : 2T2R |
Internal WiFi = 17dBm/path * | (option: Internal WiFi or External WiFi) | ||
3 | LTE BW | 10MHz | |
4 | No. subscriber | 16 UEs | |
5 | Mounting structure | Wall mount | |
6 | Synchronisation | Enhanced IEEE1588 | |
7 | Power | DC 12V, MAX 6A (Adaptor) | |
8 | Power consumption | LTE = 22W (typical), 24W (max) | When using External WiFi |
Internal WiFi = 13.5W (max) | Max. 40W | ||
9 | WiFi | Internal WiFi Module | Factory Set |
External WiFi support structure | |||
10 | Temperature condition | 0~50°C | IEC60068/IEC60068-2-1 |
11 | Humidity condition | 0~95% | |
12 | SIZE(mm) | 290(W) × 54(D) × 190(H) |
