Gate Valve
Model Name
-
Series
Cast Steel Valve
Data
-
Manufacturer information
provider logo
SAMSHIN

Valve for thermoelectric power plant / nuclear power plant manufacturer, Gate valve, Globe valve, Check valve, Control valve and more

Problem with product info?
Update request
Manufacturer
SAMSHIN
Brand
-
SKU
56639
Product Name
Gate Valve
Model Name
-
Size
-
Weight
-
Product Details

GATE VALVE

1. Pressure rating : ASME Class 150 to 4500
2. Size : 2-1/2" to 80"
3. Material
   - Carbon steel
   - Low alloy steel including ASTM A217-C12A
   - Austenitic stainless steel
   - Special alloy steel

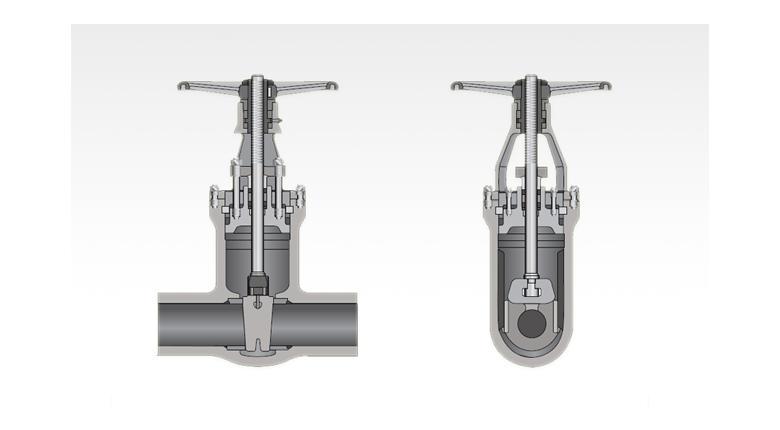

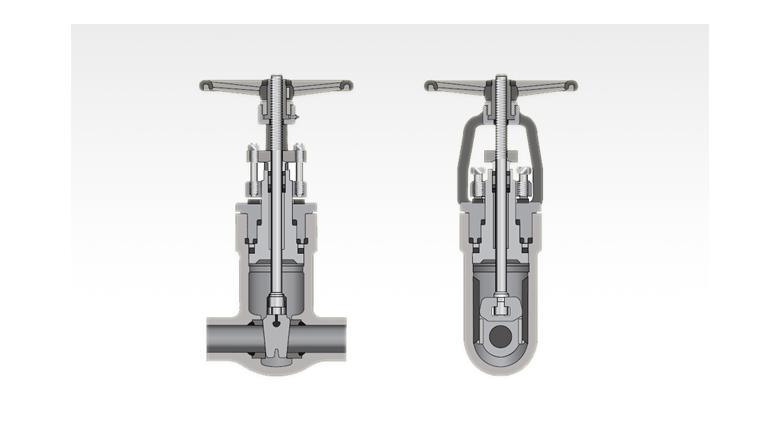

4. Bonnet type
   - Bolted type bonnet including lip seal type
   - Pressure seal type bonnet
5. Disc type
   - Flexible wedge disk
   - Parallel slide disk (with spring)
   - Parallel slide disk (without spring)
6. Option : Gear/Electric/Pneumatic operator, Bellow seal, By-pass line (w/valve), Equalizing line (w/valve), Extension stem, Limit switch, Locking device, Position indicator, Stem protector, etc.



Samshin Gate Valve

SAMSHIN
Valve for thermoelectric power plant / nuclear power plant manufacturer, Gate valve, Globe valve, Check valve, Control valve and more
Based on the proven technology and quality assurance program pursuing public safety and customer satisfaction as the top priority, Samshin Limited manufactures and supplies forged steel valves and cast steel valves for high pressure and high temperature services including special purpose valves for thermal and nuclear power plants, and cryogenic services as well as oil and petrochemical plants and shipbuilding industries all over the world. Samshin Limited performs valve design, material manufacturing of forged steel and cast steel, fabrication, production test, equipment qualification test using its own facilities and diagnostic test services for power operated valves in nuclear power plants according to the requirements of the applicable codes, standards, regulations and customer's purchase order. Samshin Limited is ready to be your ideal partner for more safe and efficient plant operation with reliable products.
