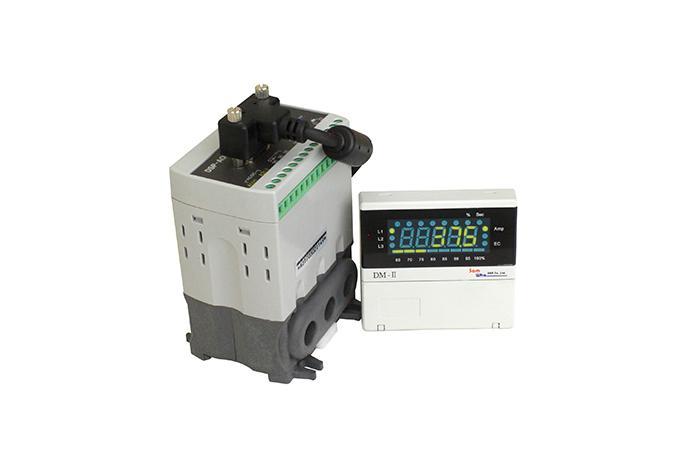

product Image
전류 A-Type(AOM/AOL=>4E급 계전기 ZCT 내외장형)
Model Name
AOM
Series
Motor Protection Relay
Data
-
Manufacturer information
provider logo
SAMWHA DSP

Motor protection relay, DSP, VIP, Solid State Relay, SSR, WKS, SCR Unit

Problem with product info?
Update request
Manufacturer
SAMWHA DSP
Brand
-
SKU
57831
Product Name
전류 A-Type(AOM/AOL=>4E급 계전기 ZCT 내외장형)
Model Name
AOM
Size
-
Weight
-
Product Details

AOM (4E 기본기능)

*Panel Flush Mounting Type(판넬 외장형)AOM
 DSP-AOM(보호기능 : 기본4E)
*Panel Flush Mounting Type(판넬외장형,메타 분리형) :AOM
*기본형:외부ZCT 적용, 주문형:ZCT 내장
*높은 경쟁력(동급 최저가격)
■ 다양한 출력 접점 응용
- 접점 동작 형태 : 출력 접점 형태:95-96-98,05-06-08
■MCU based 정확한 보호기능 실행
■ Protection Level:초소형 다기능 4E Class
 *보호기능:과전류/저전류/결상/역상/불평형/구속/지락
■ 지락보호를 위한 동작:1~3초
■ 3상 전류,부하률 ,지락전류,누적운전시간 순환표시:3초 간격
■ 지락 전류 검출 보호:50mA ~2A
■ 2가지 ZCT 정격 수용 : 현장 대응 효율성 제고
:DSP-AOM-A Type : 200mA/1.5mA 의 ZCT 적용
:DSP-AOM-V Type : 200mA/100mV 의 ZCT 적용
■ 모터 정지시 ZCT 미접속 경보 : 확실한 모터 지락보호 보장
▶주의 : Inverter 적용 계전기 위치는 인버터 2차 출력단에 설비하여야 합니다.
