Ground fault protection relay
Model Name
DSP-DGFR-M
Series
The Others
Data
-
Manufacturer information
provider logo
SAMWHA DSP

Motor protection relay, DSP, VIP, Solid State Relay, SSR, WKS, SCR Unit

Problem with product info?
Update request
Manufacturer
SAMWHA DSP
Brand
-
SKU
58066
Product Name
Ground fault protection relay
Model Name
DSP-DGFR-M
Size
-
Weight
-
Product Details

◆ Digital Ground fault protection relay
◆ Minimized compact size,panel mounting type
◆ MCU(Microprocessor Control Unit) based
◆ High sensitive wide range:30mA~4A
◆ Precised preset for zero phase current & time :3 Digit Window
◆ Various response : variable Eot
◆ Various type based on ZCT type
*DGFR-A Type : ZCT → 200mA/1.5mA :30mA ~ 4A
*DGFR-V Type : ZCT → 200mA/100mV :30mA ~ 4A
*DGFR-N Type : NCT → 100A/5A :200mA ~10A
◆ Self diagnostic function

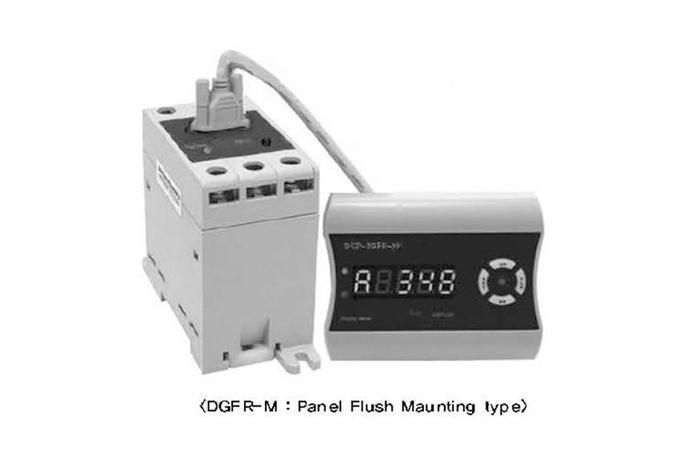

SamWha DSP Ground fault protection relay DSP-DGFR-M

SamWha DSP Ground fault protection relay DSP-DGFR-M 1

SamWha DSP Ground fault protection relay DSP-DGFR-M 2
