Product Name

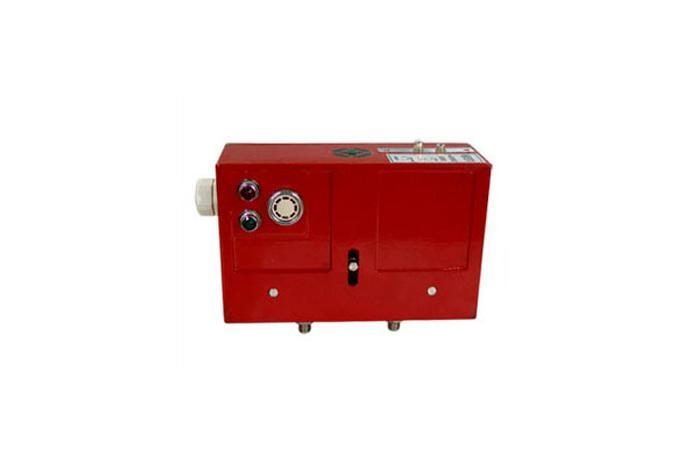

양중기용 과부하 방호장치
Model Name
HJ-114SH
Size
-
Weight
-
Product Details
*기계식 과부하 방호장치
*구조간단 견고성 정확도 5%대 실현
*곤돌라(건물용,중공업 선박전조용,건설용),화물승용리프트등 와이어 루프형 모든양중기에 적용가능구조
1, 적용기기에 안전창치(HJ-114SH)를 취부할 수있는곳을 선정하여 고정 설치한고 안전장치내부에 와이어로프를 그림1과 같이삽입하고 와이어로프의 입출구가 최대한 수직,수평되게 맞추고 제품에 있는 볼터를 단단히 조인다.
2, 전기 배선은 결선도1과같이 케이블단자번호와 같이 배선하고 전원을 공급 UP M/C 코일선에 결선도와 같이 연결한다.
3, 설치 및 배선이 완료되면 적용기계 정격하중 및 설정하고자 하는 하중을 적제한후 지면에서 약100mm 상승시킨다.
4, 중량물이 흔들리지 않게 곤돌라를 정지시킨후 조정볼터 렌지를 이용하여 반시방향으로 천천히 회전시키면부저음이 발생하면 멈추고 조정을 완료한다.
5, 조정이 완료되면 하강하여 중량물을 10%하차하고 상승동작시켜 정상동작하는지 확인한다. 단 : 여기서 정상동작하지 않을경우 4번항부터 다시한다.
6, 설정한후 정상동작이 이루어지면 봉인한다. 7,중량물이 흔들릴 경우 자기 무게에 3배의 힘이 검출 될수있어 경음 할 수있습니다.
>
