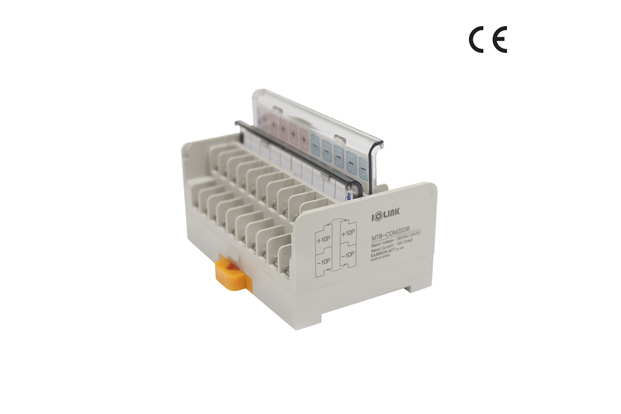

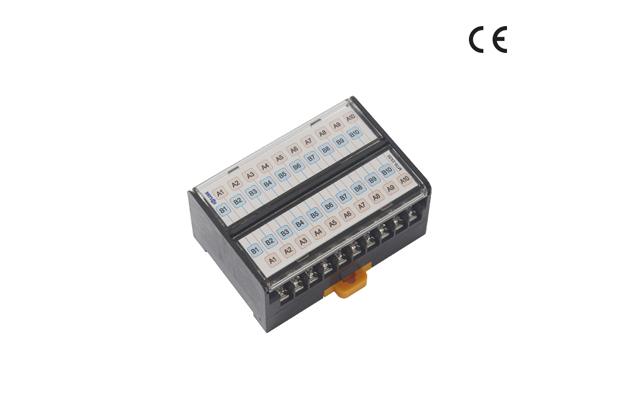

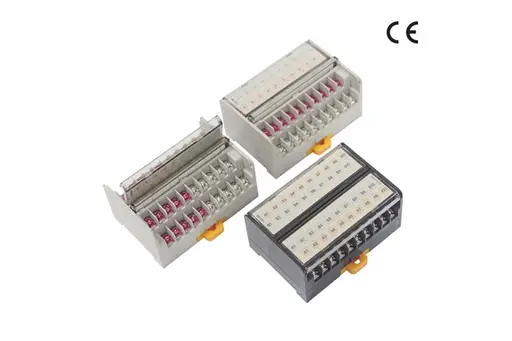

MTB Series
7.0mm pitch, terminal block at both ends
Features
ㆍBuilt-in board type
ㆍ20Pole, 7.0mm Pitch terminal block at both ends that does not require separate assembly
Main Features
No need for a separate assembly process, since it is modularized by 20Poles
|
Less pitch than using a 2-tiered self-assembly terminal block, saving about 15% of the mounting size MTB-2X20 → 80㎜ / Self-assembly 2-tiered terminal block → About 95㎜ |
Hinged sliding window structure eliminates the need to separate the window when wiring |
In the case of COM20D model, there is no need to use a separate short bar as COMMON is processed on the internal board, and the power terminal can be visually checked by applying the + terminal colored bolt |
