R16Q Series

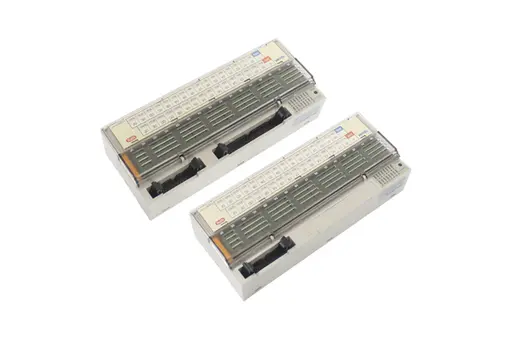

16 points + 16 points master/slave, PANASONIC PQ relay installed
Features

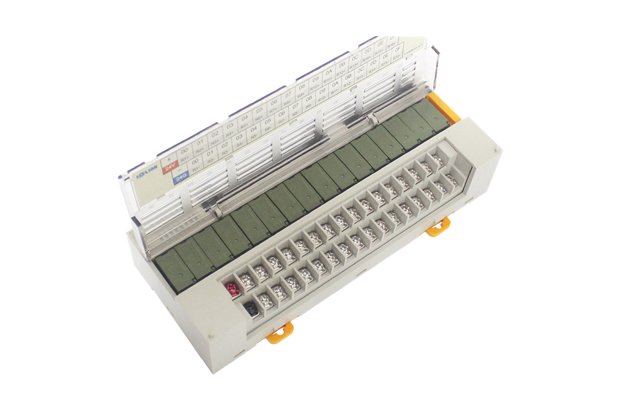

Relay board with long-life large PANASONIC PQ relay of surge voltage of 8,000V
Main Features

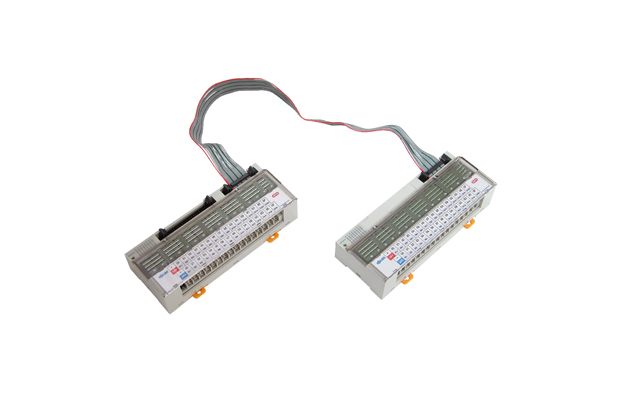

Set composition of master and slave board in units of 16-points When installing on 32-point PLC output, use a jump cable between master and slave to connect, so use a cable with the same specification as our 32-point relay board |
Safety and convenience Improved workability by attaching an LED for relay operation check and a structure that can be mounted on DIN rail / Protection of controller circuit and prevention of malfunction by installing surge absorption circuit on the coil side |
Supply of cables that can be connected to various PLCs and controllers Able to respond to small quantity orders of various types by securing connectors used for domestic and overseas PLC, machine tools, DCS, DCC, etc. at all times |
Usage according to usage environment Optimal for inductive loads such as solenoids and electromagnetic switches / Systems with high opening/closing frequency and high surge generation |
