Standard Worm Reducer

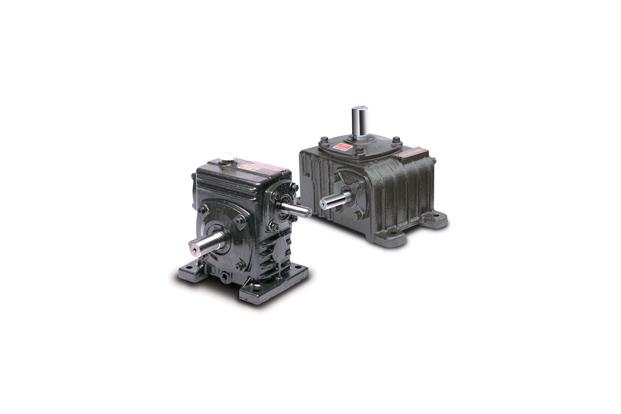

Standard Worm Reducer

Model Name

Series

Gear Unit

View AllView All Series

Data

Catalog-Samyang Reduction-Gear Unit-Standard Worm Reducer

Manufacturer information

NARA SAMYANG

Industrial reducing machine manufacturer, Geared motor, Worm reducing machine, Planetary reducing machine, Solar lighting and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

NARA SAMYANG

Brand

SKU

135177

Product Name

Standard Worm Reducer

Model Name

Size

Weight

Product Details

Products Overview
WB (Bottom Type)	Input shaft is located at a lower part than the reduction gear's wormgear and output shaft is out horizontally. As the lubrication condition of Bottom Type is better than those of Up Type, it is more advantageous to use Bottom Type than Up Type in the case of large size or 2 stage types.
WU (Up Type)	As input shaft is located at a upper part than the reduction gear's wormgear and output shaft is out horizontally, it is easy to install pulley and sprocket.
WV (Vertical Type)	Output shaft is out in the vertical direction on the case floor reference plane. As the lubrication condition is also good, this is suitable for the low speed high load such as an agitator.
DSW (2 Stage Type)	Being composed of 2 reduction gears, this can obtain high reduction gear ratio. (1/3600) As the input power is lowered by one step, careful selection is required.

Main Features
- Low price - Beautiful design : Standardized shape, and the appearance is more beautiful and stable than the previous products. - Lifetime improvement by optimal design : Optimized design of case, worm gear, worm and cover substantially improved the structure strength and lifetime of each part. - Model No.(Center distance : mm) : 33, 49, 60, 77, 88, 96, 120, 125, 140 - Reduction gear ratio : 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60, 1/100, 1/150, 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900, Manufactured up to 1/3600

Main Features

- Low price
- Beautiful design : Standardized shape, and the appearance is more beautiful and stable than the previous products.
- Lifetime improvement by optimal design : Optimized design of case, worm gear, worm and cover substantially improved the structure strength and lifetime of each part.
- Model No.(Center distance : mm) : 33, 49, 60, 77, 88, 96, 120, 125, 140
- Reduction gear ratio : 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60, 1/100, 1/150, 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900, Manufactured up to 1/3600
