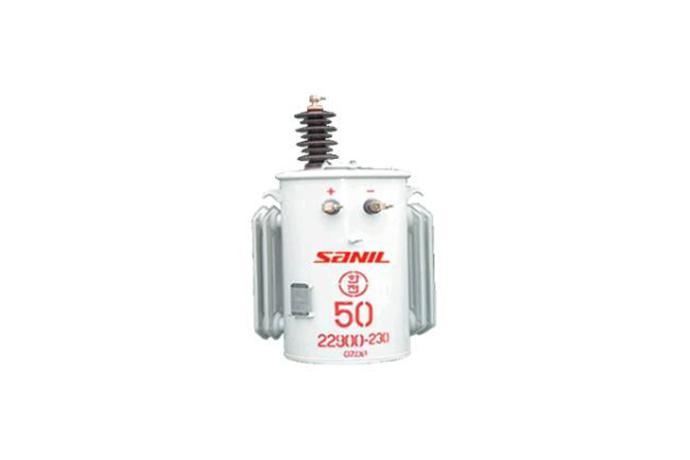

Pole-mounted transformers are installed on poles to supply electricity for residential and commercial areas. Sanil provides complete line of single phase pole-mounted transformers for overhead distribution system.
● Maximum Rated Capacity : 1MVA
● Single Phase Maximum Rated Voltage.
- 1 Bushing-22,900V GrdY/13,299-230V
- 2 Bushing -22,900V-230V
● Three Phase Maximum Rated Voltage : 34.5KV
● Frequency : 50, 60 Hz
● Phase : 1Ø, 3Ø
● Insulation : A Class
● Standard : IEEE, ANSI, KS
