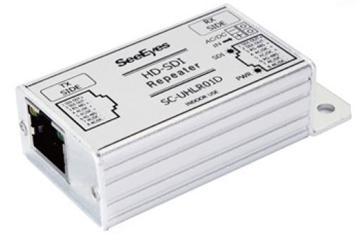

product Image
EX-SDI, HD-SDI Transmission
Model Name
SC-UHLR01D
Series
EX-SDI, HD-SDI Transmission
Data
SC-UHLR01D
Manufacturer information
provider logo
SEEEYES

CCTV manufacturer, Image transmission device, HD converter, Router, Portable monitor and more

Problem with product info?
Update request
Manufacturer
SEEEYES
Brand
-
SKU
111435
Product Name
EX-SDI, HD-SDI Transmission
Model Name
SC-UHLR01D
Size
-
Weight
-
Product Details

단독사용불가

채널 : 1CH

단위 : EA

전송거리 : 150m(Full HD:1.5G), 중복사용가능(최대 4EA)

구성 : SC-UHCP1001D

특징 : UTP 장거리 EX-SDI(1.0) 리피터(SC-UHCP1001D 전용)

SC-UHLR01D는 SC-UHCP1001D의 송신기와 수신기 간에 사용하는 리피터로써, EX-SDI(1.0) 신호를 리피팅하여 장거리 전송할 수 있는 제품입니다. SC-UHLR01D는 SC-UHCP1001D 수신기로부터 UTP 케이블을 통해 구동전원을 공급받아 사용하며, RS-485 데이터도 리피팅하여 원격지에서 컨트롤러를 연결하여 카메라를 제어할 수 있습니다. UTP 케이블을 이용하여 HD-SDI 신호를 장거리 전송할 수 있으므로 기존에 포설된 케이블을 교체 없이 활용하여 HD 시스템을 구축할 수 있어 시공비 절감의 효과 까지 거둘 수 있는 제품입니다.

씨아이즈(주)  SC-UHLR01D

씨아이즈(주)  SC-UHLR01D 1

씨아이즈(주)  SC-UHLR01D 2
