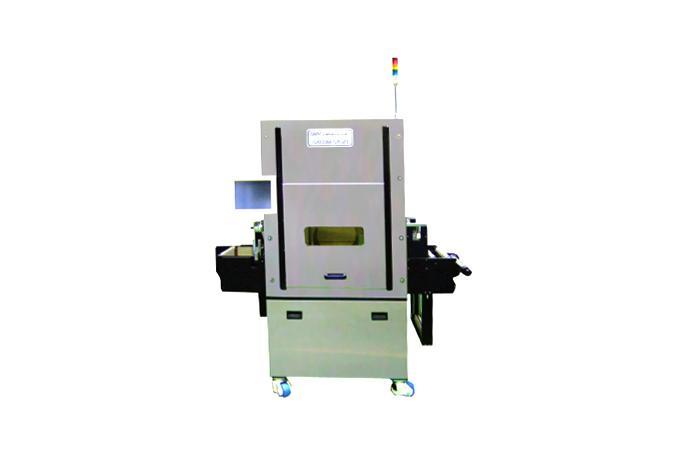

Roll to Roll Automatic Collimated Light Exposure Machine
Model Name
SACRM-SA5K1
Series
UV Exposure
Data
-
Manufacturer information
provider logo
Seimyuing Vactron

UV exposure, UV curling machine, Laminator, UV lamp, UV LED lamp

Problem with product info?
Update request
Manufacturer
Seimyuing Vactron
Brand
-
SKU
36863
Product Name
Roll to Roll Automatic Collimated Light Exposure Machine
Model Name
SACRM-SA5K1
Size
-
Weight
-
Product Details

Motivation for development
Equipment developed for use in the single-sided exposure of the Flexible PCB (FPCB). Exposure width is designed to be up to 250mm or 500mm.

Use : For FPCB-manufacturing process

Product Features
① Optical system, light source, and instrument parts are integrated and are used for single-sided exposure.
② This equipment is a roll to roll single-sided collimated light exposure machine (downward): collimated light source installation
③ Classification by light sources based on exposure machines, available to be installed interchangeably - Short arc lamp 5kW (PC5000SV)
④ ROLL (FPC), 500mm or less in width, single-sided inner layer(only condition of DF work done - no standard holes) - vision and alignment instrument added for the outer layer
• Intensity of illumination: 25 mw/㎠ or more, uniformity: 85% or more
• Exposure area: 500mm X 500mm
• Degree of quality: making 40㎛ to 60㎛ of products (using D/F 30㎛ or less)
• Tact time: spending 4 to 6 seconds based on DF 50mj/㎠ general exposure machine vacuum method (contact method-hard contact).
• Combinational use of 3RT (freezer and outdoor unit) and forced air cooling exhaust method
• Sensing (EPC-sensitive), instrument alignment (STEPPING MOTOR)-design (equipment) included
• PLC and touch panel applied

Main Specifications

Seimyuing Vactron Roll to Roll Automatic Collimated Light Exposure Machine SACRM-SA5K1

Seimyuing Vactron
UV exposure, UV curling machine, Laminator, UV lamp, UV LED lamp
