Motivation for development

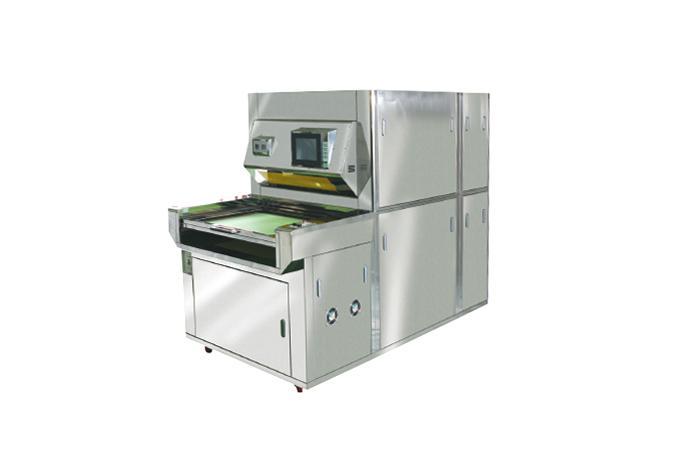

Exposure machine to increase productivity and pattern precision in FPCB companies Capable of exposing two sheets of FPCB at the same time and even a large size of PCB, aligning manually, and designed to be up to 20㎛ in exposure-patterning capacity Adopted a precise optical system, and 8kW as a light source for pattern precision and high productivity
Main Use : For PCB- and FPCB-manufacturing process
Product Features
① This equipment is the exposure equipment used for PCB or flexible manufacturing process and DF.
② Operational efficiency has been improved due to the achievement of high-efficiency UV flux and high-level beam uniformity.
③ The design of a precise optic system allowed for fine patterns.
④ Easy management of the system state through the touch panel
⑤ Power supply - optional
⑥ External SUS (concern for foreign substances: optional)
⑦ Inner layer: 60 ~ 80㎛ realized
⑧ Collimation angle: 22° -32° 4’
⑨ Automatic frame-switching method
Main Specifications
