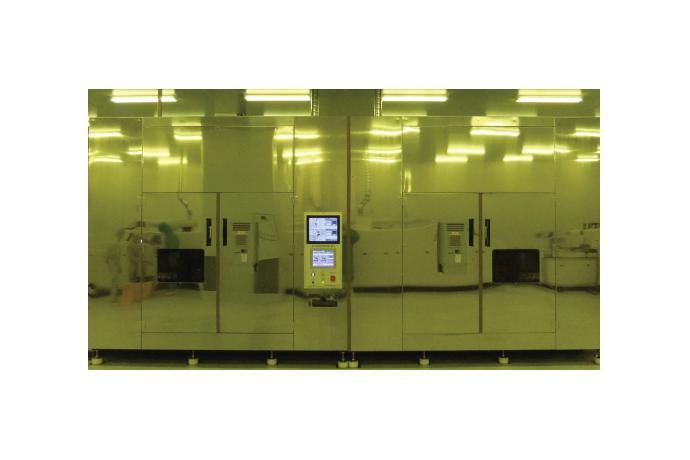

Large-Area Proximity TSP Automatic Light Exposure Machine
Model Name
SEPLS 6275-1
Series
UV Exposure
Data
-
Manufacturer information
provider logo
Seimyuing VactronUV exposure, UV curling machine, Laminator, UV lamp, UV LED lamp
Problem with product info?
Update request
Manufacturer
Seimyuing Vactron
Brand
-
SKU
36873
Product Name
Large-Area Proximity TSP Automatic Light Exposure Machine
Model Name
SEPLS 6275-1
Size
-
Weight
-
Product Details

Motivation for development
This is an exposure machine to mass-produce TSP. It makes it possible to convert the size of 620mm * 750mm into patterns with dimensions as small as 10㎛ with the proximity method by applying the one-shot module of six-shot stepper of the LCD exposure machine, and the space in proximity between the mask and the product is designed to be 200㎛ or so.

Main Use : for TSP- and LCD-manufacturing process

Product Features
① This equipment adopts the proximity method, and have removed the problems of alignment distortion resulting from hard contact, damage to the mask at the time of contacting the mask and the product, and Takt time, all of which are arising from the existing exposure.
② Available to check the precise starting point in real time and control an exact proximity distance
③ Capable of realizing 10㎛-[on condition of 8㎛ in PR thickness] L/S, despite the proximity exposure method [Realizing a high-performance UV optical system]
④ Capable of contributing to increase in cleanliness in the product lines because it does not require vacuum chamber structures for close adhesion

Main Specifications

Seimyuing Vactron Large-Area Proximity TSP Automatic Light Exposure Machine SEPLS 6275-1

Seimyuing VactronUV exposure, UV curling machine, Laminator, UV lamp, UV LED lamp
Since 1988, S.M.V. has been keeping the Korea’s Top references and Leading Technology manufacturer and still continued has been keeping pace and developing for 3 main advanced industrial technology with 26 years accumulated know-how for UV Technology as; UV Exposure equipment business field for PCB, TSP, LCD and OLED field division as called the backbone of the electronic industry etc, UV Cuting equipment business field for Furniture (Wood, Timber), Printing, Packing, Consumer goods, Electronics, Telecommunications, Telecom, Automation and Environment-friendly industries etc, UV Light source development business field for the high-tech industries. In particular, Have a sens of pride that the subject of national policy were well performed brilliantly and at the same time, we are having the technology and price competitiveness can be competitive with world’s leading companies. We came to be a domestic UV industry’s stepping stone in every hump, with unity of our loyal employee’s passion and honesty. The 21st century is requiring a leading technology fusion, and industrial 4G is demanding us a new crisis and challenge. Thus, based on the accumulated our Know-how, we are developing our core technology we holds to apply the skills and values of innovation and creative engineering to prepare into the international competitiveness system for the second leap.
