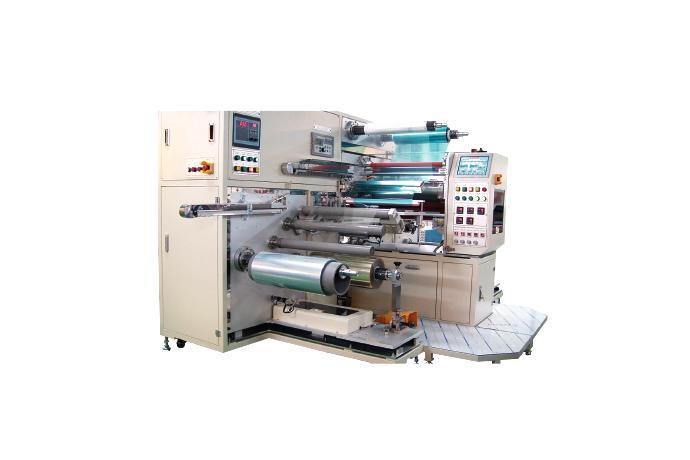

Roll to Roll Automatic Laminator for ITO Films
Model Name
SAL-600FP
Data
-
Manufacturer information
provider logo
Seimyuing Vactron

UV exposure, UV curling machine, Laminator, UV lamp, UV LED lamp

Problem with product info?
Update request
Manufacturer
Seimyuing Vactron
Brand
-
SKU
36890
Product Name
Roll to Roll Automatic Laminator for ITO Films
Model Name
SAL-600FP
Size
-
Weight
-
Product Details

Motivation for Development
Laminator used to manufacture touch sensors of TSP. Laminator designed to increase workers’ convenience, productivity, and efficiency in the touch sensor process by remodeling a roll to roll PCB laminator for PCB.

Main Use : For sensor-manufacturing process and touch sensor-manufacturing process

Product Features
① The winder of this equipment is up to 80kg in weight and has 500mm of 6" air shaft.
② As for tension, this product is 1-100N/full in tension adjustment and EPC ± 0.5mm in road cell. (Option: Auto Tacking)
③ The hot roll is 0.5Kgf/㎠ in thermal fluid, 130±5℃ in temperature, and 70 in hardness. The pressure is 0-5Kgf/㎠.
④ The voltage and frequency for utilities are 220V, 60HZ and the air is 6Kgf/㎠.

Main Specifications

Seimyuing Vactron Roll to Roll Automatic Laminator for ITO Films SAL-600FP

Seimyuing Vactron
UV exposure, UV curling machine, Laminator, UV lamp, UV LED lamp
Since 1988, S.M.V. has been keeping the Korea’s Top references and Leading Technology manufacturer and still continued has been keeping pace and developing for 3 main advanced industrial technology with 26 years accumulated know-how for UV Technology as; UV Exposure equipment business field for PCB, TSP, LCD and OLED field division as called the backbone of the electronic industry etc, UV Cuting equipment business field for Furniture (Wood, Timber), Printing, Packing, Consumer goods, Electronics, Telecommunications, Telecom, Automation and Environment-friendly industries etc, UV Light source development business field for the high-tech industries. In particular, Have a sens of pride that the subject of national policy were well performed brilliantly and at the same time, we are having the technology and price competitiveness can be competitive with world’s leading companies. We came to be a domestic UV industry’s stepping stone in every hump, with unity of our loyal employee’s passion and honesty. The 21st century is requiring a leading technology fusion, and industrial 4G is demanding us a new crisis and challenge. Thus, based on the accumulated our Know-how, we are developing our core technology we holds to apply the skills and values of innovation and creative engineering to prepare into the international competitiveness system for the second leap.
