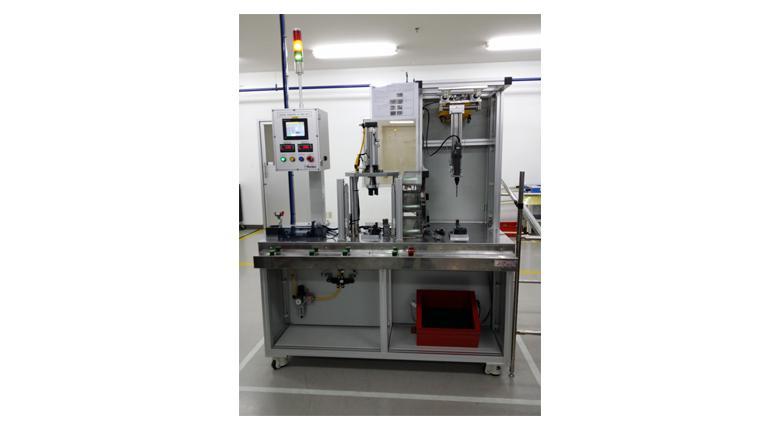

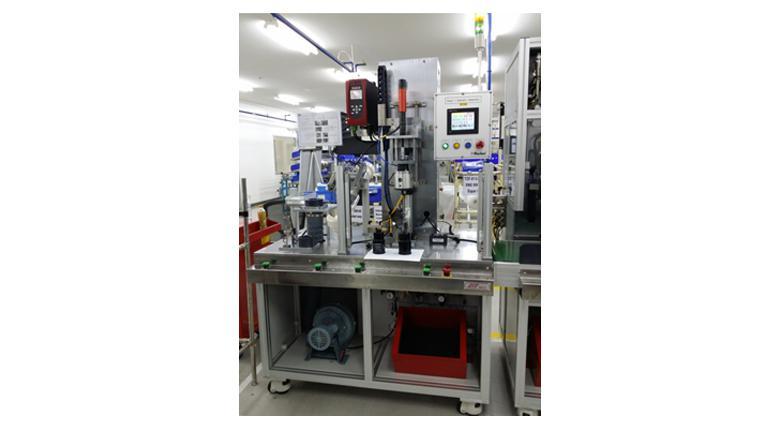

This equipment has Mazda car's J-03 vehicle's fuel filter sub assembly and leak test system running equipment.

Parker Hannifin Thailand exported equipment consists of seven steps as a whole unit equipment.

Unit process by assembling parts missing and OK/NG for interlock, this consists of the assembly process in the missing parts, wrong parts, or NG is found associated with testing is not conducted fairly.

Especially in the filter head/Outlet Pipe rolling admissions process, Press fitting for pressure graph.

Data is automatically stored in the SD Card keeps track of the data so that you can manage.

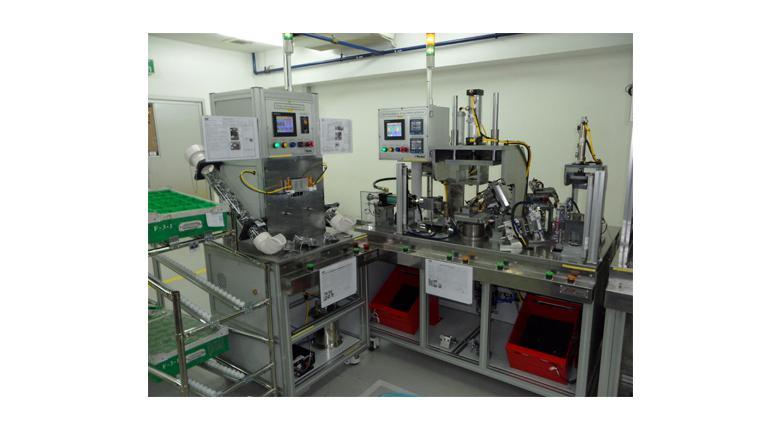

* Fuel filter Assembly process
 Pipe glue application ⇒Insert the Outlet pipe ⇒Check the angle of the pipe

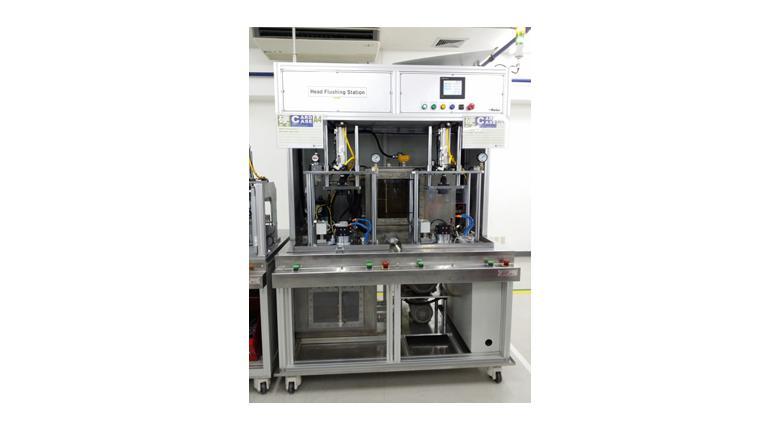

 assembly ⇒Head cleaning ⇒ assemble column line element torque &
 assembled ⇒The finished product leak test

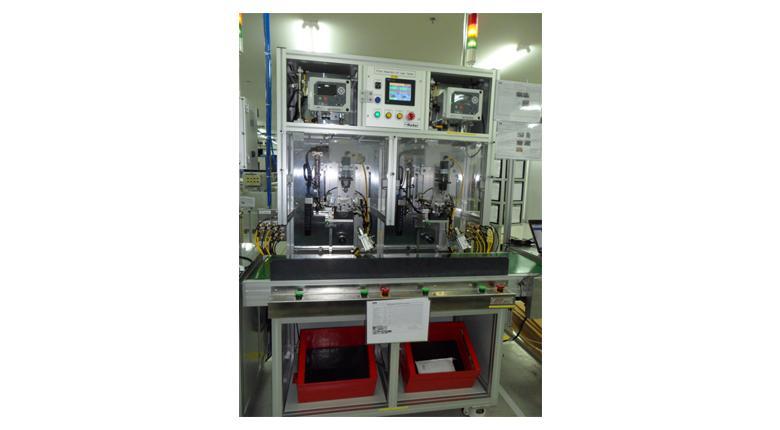

The final finished product Assembly processes, Air Leak Test pressure
0.5 /2.0bar tested by pressurizing, a leak is 2.0 cc/min on the basis of Ok/NG judgment.

Air Leak Test unit is a CINCINATI C-28 model detects Pressure Decay manner.
