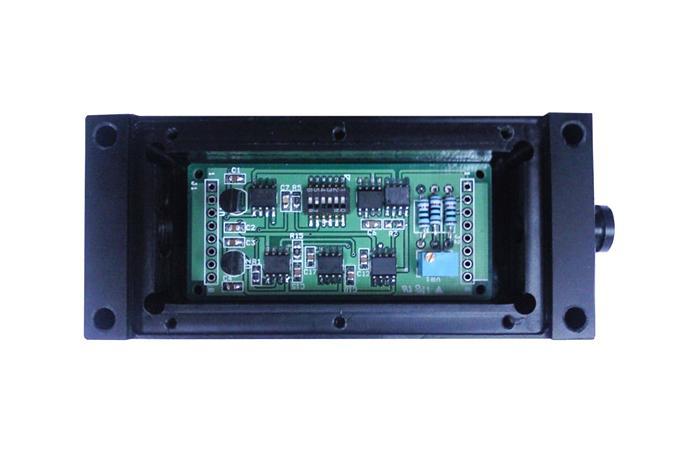

product Image

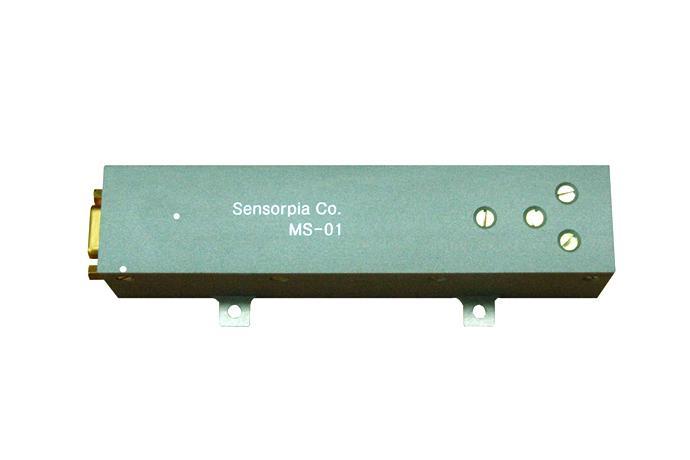

3-Axis Fluxgate Magnetometer
Model Name
MS-01
Series
Magnetic Sensors
Data
-
Manufacturer information
provider logo
Sensorpia

Flux-gate sensor, Blood pulse measuring sensor, Terfenol actuator, Saturable core tester of on-line tester and Precision magnetic measuring instruments

Problem with product info?
Update request
Manufacturer
Sensorpia
Brand
-
SKU
40815
Product Name
3-Axis Fluxgate Magnetometer
Model Name
MS-01
Size
-
Weight
-
Product Details

- Measuring range : +/- 60,000 nT
- Resolution : 2 nT
- Mass : 250 g max
- Axis Alignment : +/- 2 deg max
- Linearity : +/- 0.5% of full scale
- Bandwidth : 10 Hz
- Power : +/- 5 V
- Power Consumption : 1 Watt max
- Temperature Coefficient : +0.3%/C(-50C ~ 65C)
- Interface : RS232C or RS422


Sensorpia
Flux-gate sensor, Blood pulse measuring sensor, Terfenol actuator, Saturable core tester of on-line tester and Precision magnetic measuring instruments
Sensorpia company was established in 2006. The company produce magnetic sensors and magnetic instruments which were developed in Applied Magnetics Laboratory in Hannam University. Main products are flux-gate sensors, blod pulse measuring sensor, terfenol actuator, saturable core tester of on-line tester, and other custom designed precision magnetic measuring instruments. Recently magnetic sensors for satellite were developed and waiting for launching, and drift self-compensating type fluxmeter was developed for nuclear fusion research and now under field test.
