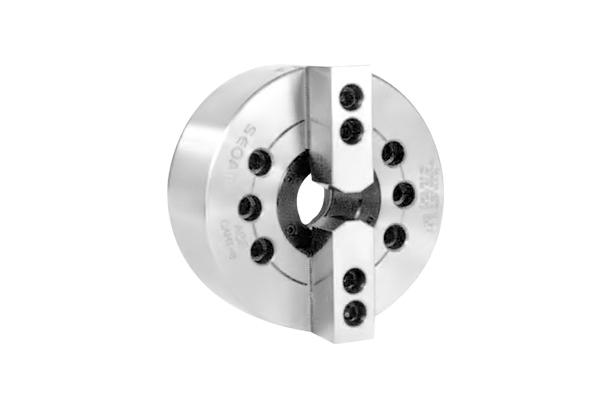

2-JAW OPEN CENTER LONG STROKE POWER CHUCK (CAHTL)
Model Name
CAHTL-08
Series
Special Chuck
Data
-
Manufacturer information
provider logo
SEOAM

Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more

Problem with product info?
Update request
Manufacturer
SEOAM
Brand
-
SKU
126700
Product Name
2-JAW OPEN CENTER LONG STROKE POWER CHUCK (CAHTL)
Model Name
CAHTL-08, CAHTL-10, CAHTL-12
Size
-
Weight
-
Product Details

Feature

• This is a 3-2aws Hollowness standard style with the Long Stroke.

• It is using to clamping part which needs the Long Stroke structure.



Outward Drawing




Technical data and specifications

Specifications

Spec
Model
Thru-hole(Diameter) mmJaw stroke(Diameter) mmPlunger stroke mmGripping MaxGripping MinMax. permissible input force KN(kgf)
CAHTL-084614.5202101340(4080)
CAHTL-105218252542150(5100)
CAHTL-127721.8303043158(5916)

Spec
Model
Max. static gripping force KN(kgf)Max. Permissible speed r.p.mweight(With standard soft jaws)Gd moment of inertiamatching cylinder
CAHTL-0874(7500)3000236.90(0.71)YAH-08
CAHTL-1093(9500)250039.214.85(1.52)YAH-10
CAHTL-12108(11000)190062.830.00(3.06)YAH-12



Dimension

Item
Model
ABFGHJKLMN MaxN MinO MaxO Min
CAHTL-08210955150133.4466-M12152541.734.52710
CAHTL-102541105190171.4526-M16173054.545.53112
CAHTL-12304127690171.4776-M16183067.456.54212

Item
Model
P MaxP MinQRSTU MaxVWXYZCro
CAHTL-0818.5-1.5391420.52M55X24-M660203995170
CAHTL-1014.5-10.54416272M60X24-M8663046110220
CAHTL-1216-145021282M85X24-M8943051.8111220
