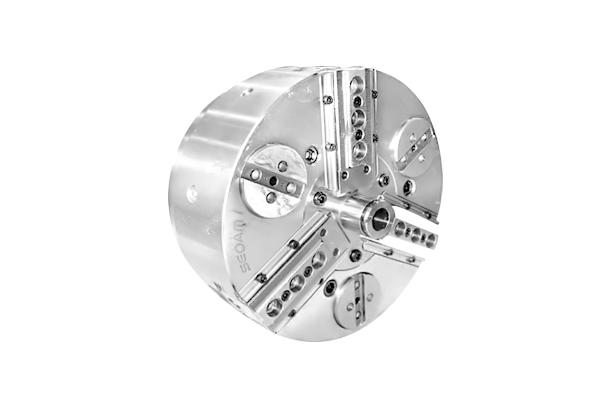

Feature
• It is able to using by all-purpose as like standard of pressure chuck. And also. it using to full diameter clamp.
• Is is using at important of the parallelization degree. When it does clamping the processing material by pulling.
• The Base Jaw is able to supply by Serration Type when the customer requirement.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) |
SM-PDO 250 | 10.57 | 30 | 250 | 24 | 40(4081) |
SM-PDO 300 | 11.99 | 34 | 300 | 26 | 50(5105) |
SM-PDO 380 | 11.99 | 34 | 380 | 60 | 60(6122) |
SM-PDO 200 | 8.46 | 24 | 200 | 23 | 30(3061) |
Spec Model | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | matching cylinder | |
SM-PDO 250 | 108(11020) | 3000 | 37 | YAS-125 | |
SM-PDO 300 | 135(13775) | 2500 | 54 | YAS-200 | |
SM-PDO 380 | 165(16836) | 1600 | 95 | YAS-200 | |
SM-PDO 200 | 80(8163) | 3600 | 21 | YAS-125 |
Dimension
Item Model | A | C | d | E | F | G | H | J | K | L | M | N |
SM-PDO 250 | 250 | 171 | 8 | 128 | 87 | 30 | 50 | 21 | 115 | 115 | 3-M12 | 117 |
SM-PDO 300 | 125 | 63.5 | 8 | |||||||||
SM-PDO 380 | 380 | 235 | 8 | 193 | 130 | 54 | 80 | 28 | 135 | 135 | 3-M20 | 137 |
SM-PDO 200 | 200 | 133 | 6 | 103 | 70 | 24 | 42 | 17 | 105 | 105 | 3-M12 | 107 |
Item Model | O | P | R Max | R Min | T | W | a | Bro | b | c | D MAX | D MIN | |
SM-PDO 250 | 19 | 54 | 34 | 4 | M20 | 5.3 | 14 | 220 | 30 | M10 | 87 | 81.7 | |
SM-PDO 300 | 39 | 5 | M24 | 6 | 14 | 19 | 40 | M10 | |||||
SM-PDO 380 | 19 | 76.2 | 50 | 16 | M24 | 6 | 18 | 235 | 54 | M12 | 133.5 | 127.5 | |
SM-PDO 200 | 12.7 | 44.5 | 34 | 10 | M12 | 4.2 | 2 | 170 | 24 | M8 | 71.5 | 67.3 |
