Feature

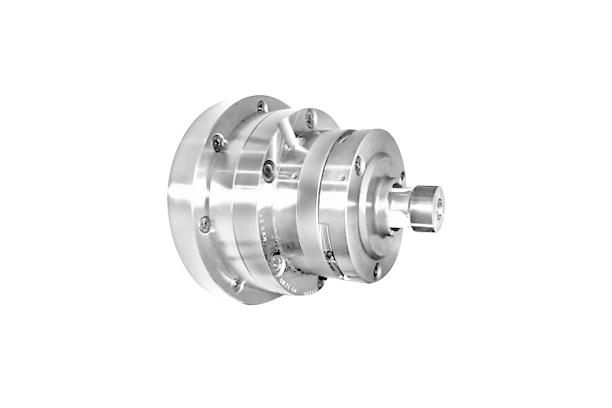

• This is a collet for inside diameter clamp. Which is using at processing finishing and grinding process.
• Is is using at important of the parallelization degree. When it does clamping the processing material by pulling.
• Especially, It is superior of thin processing material more than 3-Jaws type chuck's processing material.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m |
SM-IDC 06 | 40 | 14 | 14.7(1500) | 39.2(4000) | 4500 |
SM-IDC 08 | 90 | 40 | 24.5(2600) | 68.7(7000) | 4000 |
SM-IDC 10 | 130 | 90 | 39.2(4000) | 117.8(12000) | 3300 |
SM-IDC 12 | 180 | 130 | 47.1(4800) | 147.2(15000) | 2500 |
SM-IDC 15 | - | - | - | - | - |
Spec Model | weight(With standard soft jaws) | matching cylinder | GD2 | Collet Range | Cylinder Stroke | |
SM-IDC 06 | 6.8 | YAS-100 | 0.59(0.060) | 1.4 | 4 | |
SM-IDC 08 | 13.3 | YAS-125 | 1.86(0.19) | 1.4 | 4 | |
SM-IDC 10 | 34 | YAS-125 | 6.96(0.71) | 1.4 | 4 | |
SM-IDC 12 | 55 | YAS-140 | 19.6(2.00) | 1.4 | 4 | |
SM-IDC 15 | - | - | - | - | - |
Dimension
Item Model | A | B | C | D | F | J | K | L |
SM-IDC 06 | 160 | 104.8 | 82.565 | 35 | E+24 | 35 | 15 | 115 |
SM-IDC 08 | 200 | 133.4 | 106.375 | 38 | E+24 | 35 | 20 | 135 |
SM-IDC 10 | 250 | 171.4 | 139.72 | 50 | E+24 | 35 | 35 | 180 |
SM-IDC 12 | 300 | 171.4 | 139.72 | 55 | E+24 | 45 | 40 | 220 |
SM-IDC 15 | 380 | 235 | 196.865 | 65 | E+24 | 50 | 45 | 250 |
Item Model | M | N | O | E MAX | E MIN | G MAX | G MIN | |
SM-IDC 06 | 6 | M10 | M16 | 60 | 25 | 27 | 25 | |
SM-IDC 08 | 6 | M12 | M20 | 90 | 40 | 33 | 30 | |
SM-IDC 10 | 6 | M16 | M24 | 130 | 90 | 33 | 30 | |
SM-IDC 12 | 8 | M16 | M24 | 180 | 130 | 40 | 36 | |
SM-IDC 15 | 8 | M20 | M27 | 230 | 180 | 40 | 36 |
