Feature

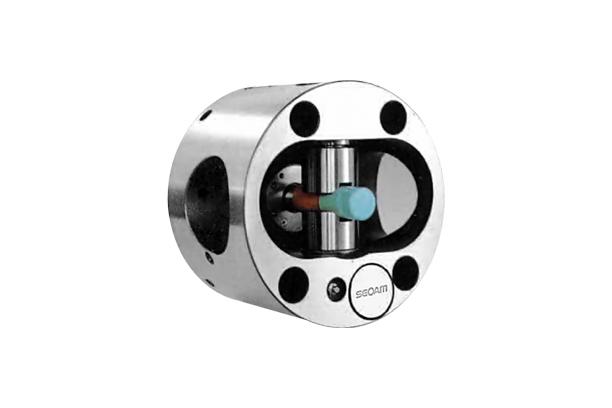

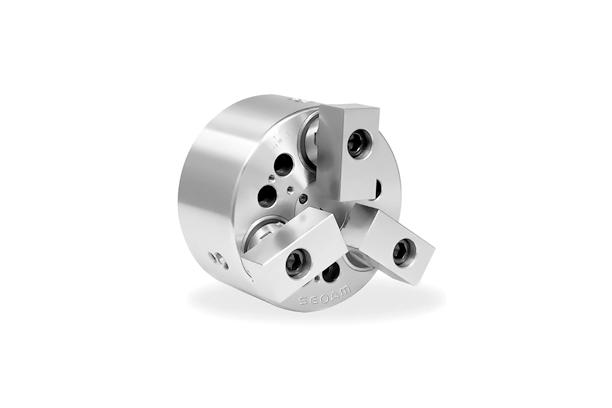

• This chuck using to complete finishing of the processing materials 4 sides or 8 sides by one time clamping.
• It is able to automatic indexing of 90° or 45°, Even if the machine spindle under rotating.
• There are deciding function of the process materials location by added installing locator to the HSR MODEL.
• It is able to powerful drilling process by the Lock Plunger function.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Spindle nose NO. | weight(With standard soft jaws) | Gd moment of inertia |
SM-HSRD 255 | ASA No.6 | 25 | 8.82(0.90) |
Spec Model | Gripping force | Main spindle bore speed | |
SM-HSRD 255 | 12.45(1270) | Over 45 |
Dimension
Item Model | A | C | D | E | F | G | H | I | J |
SM-HSRD 255 | 225 | 103 | 154 | 35 | 119 | 63 | 5 | 96 | 46 |
Item Model | K | L | M | N | R | S | T | Bro | |
SM-HSRD 255 | 58 | 15 | 15 | 40 | 133 | 4-M12 | 41 | 185 |
