Feature

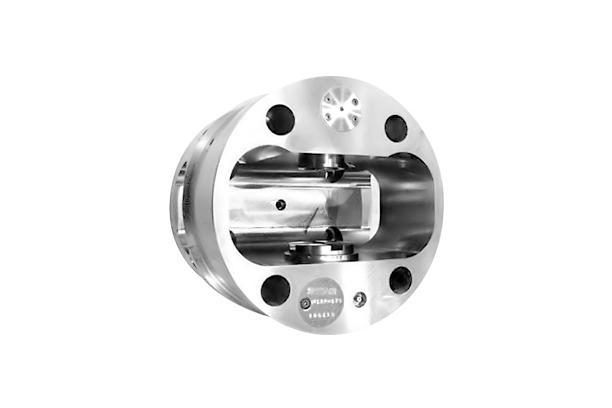

• This chuck using to complete finishing of the processing materials 4 sides or 8 sides by one time clamping.
• It is able to automatic indexing of 90° or 45°, Even if the machine spindle under rotating.
• This chuck has powerful clamp function by the grasp power added increasing more than the HSR Model.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Spindle nose NO. | weight(With standard soft jaws) | Gd moment of inertia |
SM-HSRP 265 | ASA No.6 | 58 | 24.5(2.5) |
SM-HSRP 265 | ASA No.8 | 58 | 24.5(2.5) |
Spec Model | Gripping force | Main spindle bore speed | |
SM-HSRP 265 | 34.31(3500) | Over 45 | |
SM-HSRP 265 | 18.63(1900) | Over 45 |
Dimension
Item Model | A | C | D | E | F | G | H |
SM-HSRP 265 | 265 | 208 | 213 | 75 | 48 | 119 | 100 |
SM-HSRP 265 |
Item Model | K | L | M | R | S | T | Bro | |
SM-HSRP 265 | 46 | 51 | 20 | 171 | 4-M16 | 26 | 210 | |
