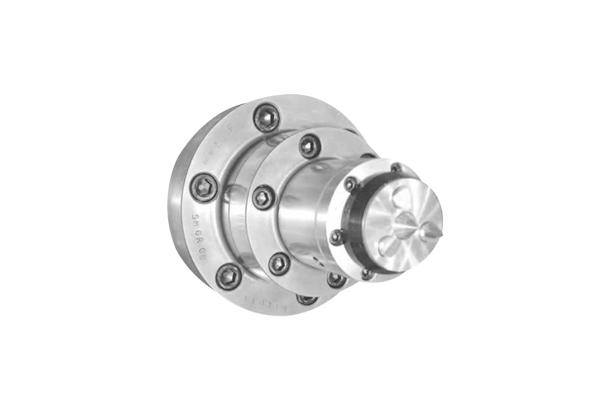

Feature
• This is a exclusive device of processing the Shaft.
• This is processing device of Shaft full diameter by cross section clamping of the Shall center standard.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | weight(With standard soft jaws) | Face Driver Stroke | F1(Facing Dia) Standard Max |
SM-FDR 32 | 15 | 5 | 36 |
SM-FDR 40 | 15 | 5 | 48 |
A1 | - | - | - |
A2 | - | - | - |
A3 | - | - | - |
Spec Model | F1(Facing Dia) Order | Center Dia Standard | Center Dia Order | |
SM-FDR 32 | 36~20 | 5 | 5~20 | |
SM-FDR 40 | 48~32 | 8 | 5~14 | |
A1 | - | - | - | |
A2 | - | - | - | |
A3 | - | - | - |
Dimension
Item Model | A | B |
SM-FDR 32 | - | - |
SM-FDR 40 | - | - |
A1 | 140 | 30 |
A2 | 165 | 35 |
A3 | 216 | 40 |
Item Model | C | Spindle nose | |
SM-FDR 32 | - | - | |
SM-FDR 40 | - | - | |
A1 | 82.563 | A2-5 | |
A2 | 106.375 | A2-6 | |
A3 | 139.719 | A2-8 |
