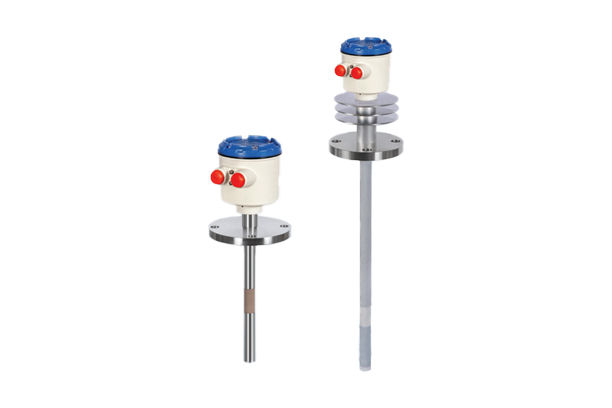

Capacitance Type Level Switch
Model Name
SCAP Series
Series
Level Switch
Data
Catalog-Seojin instech-Capacitance auto level switch (SCAP)
Manufacturer information
provider logo
SEOJIN INSTECH

Level sensor, Switch, Siemens, Transmitter, Ultrasonic, Radar, Flowmeter, Water level gauge, Orifice

Problem with product info?
Update request
Manufacturer
SEOJIN INSTECH
Brand
-
SKU
131493
Product Name
Capacitance Type Level Switch
Model Name
SCAP Series
Size
-
Weight
-
Product Details
TYPE & MODEL Capacitance Type Level Switch
PRINCIPLE

When the measured substance with a consistent relative dielectric constant fills up between the metal type tank connected to the earth pole and the measured pole, the device detects the changed static capacity value(C) between the measured pole and the earth pole. It was designed to automatically calibrate with just one adjustment, regardless of the relatively dielectric constant.

-Obtained the EM Mark of the Technology Standard Office.

RANGE TEMPERATURE PRESSURE
  • Standard : 250mm
  • Optional : Rod Type - within 500mm
    Wire Type : Within 5000mm
  • Standard : -20℃∼80℃
  • Optional : -20℃∼230℃
  • AMB.
FEATURES OUTPUT APPLICATION
  • Successful task jointly performed with the Korea Research Institute of standards
  • Applicable to fluids, powders & fine powders
  • The materials and format of the detecting part can be selected according to the various measured substances
  • The attached substances' static power generator (substance) measurable
  • Automatic control function embedded
  • Explosion proof type possible
    (Ex d ⅡB T4)
  • 1 DPDT
  • Contact capacity : 5A 250V AC
  • Water, Oil, Chemical substance, Paint, Sludge tank
  • Measurement of the water and oil's interface
  • Cement, Sugar, Barley, Grains, Resin, Resin Powder, Chip, Ore, Coal, Slaked lime silo, etc.
POWER SUPPLY
  • 110/220V AC, 50/60Hz
REMARK Mat'l : 304/316SS (PTFE Tubing)
INDUSTRY Industrial Plant, Petrochemistry

MODEL: SCAP-1-A-1-A-1-A-1, SCAP-1-A-1-B-1-A-1, SCAP-1-A-2-A-1-A-1, SCAP-1-B-1-A-1-A-1, SCAP-1-C-1-B-1-A-1, SCAP-1-C-1-OP-1-A-1, SCAP-1-C-2-B-1-A-1, SCAP-1-C-2-OP-1-A-1, SCAP-1-D-1-B-1-A-1, SCAP-2-A-2-B-3-A-1, SCAP-3-A-1-B-4-A-1, SCAP-3-A-2-B-4-A-1, SCAP-4-A-1-B-3-A-1, SCAP-4-A-2-B-3-A-1, SCAP-5-A-1-B-1-A-1, SCAP-6-A-1-B-1-A-1
