FEATURES

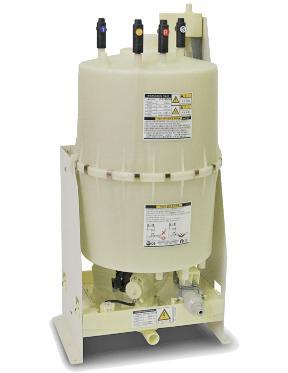

OH Series products are newly developed OEM electrode humidifiers that are designed to have the structure and the systems that allow the humidifier to be applicable in any production setting.
The series products have been selected by leading domestic and foreign companies because of their special features that include no significant restriction in water quality and free selection of humidification cylinders depending on water conductivity and supply voltage.
They have wider humidification capacity range of 2.0 ~ 45kg/h and allow proportional control operation (4-20mA / 0-10V) without an external electrical device due to a dedicated controller (E-HUMS) adopted.
SPEC |
OH006-1(6) |
OH008-2 |
OH008-3(7) |
Voltage |
1P 220V |
3P 220V 60hz |
3P 380V |
Capacity |
6[kg/h] |
8[kg/h] |
|
Consumption |
4.5[kW] |
6.0[kW] |
|
Rated current |
20.5[A] |
15.8[A] |
9.1[A] |
Cylinder |
CY006-1 |
CY008-02 |
CY008-3 |
Water supply |
1P 220VAC, 1/4inch Copper tube, 2~8[bar] |
||
Drainage |
1P 220VAC, ID22[mm]heat resist hose, 8ℓ/min |
