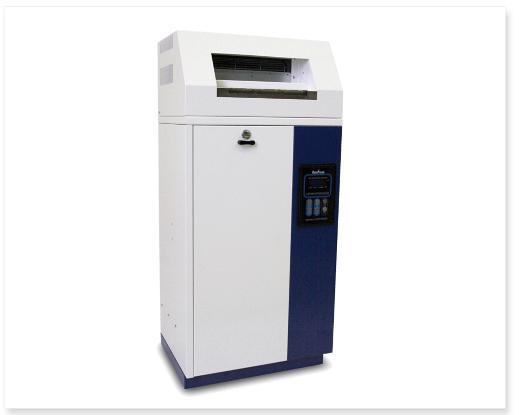

Humidifier (FH Series)
Model Name
FH015
Series
Humidifier
Data
-
Manufacturer information
provider logo
SEUNGIL ELECTRONICS

Industrial controller, Electrode steam humidifier, Configurable controller, Temperature humidity sensor, Automatic control system, Temperature humidity converter

Problem with product info?
Update request
Manufacturer
SEUNGIL ELECTRONICS
Brand
-
SKU
130085
Product Name
Humidifier (FH Series)
Model Name
FH015
Size
-
Weight
-
Product Details

제품소개

FH-series는 독립형 전극봉식가습기와 팬유닛을 일체화한 제품으로 가습설비가 되어있지 않은 장소에 직접 가습을 할 수 있도록 구성된 제품입니다.

가습용량은 2.0~30.0kg/h의 구성으로 폭넓게 사용할 수 있으며, ON/OFF 운전과 비례제어 운전이 가능합니다.



SPEC

FH015-2

FH015-3

구모델

FASPH-2153

FASPH-3153

가습전압

삼상 220V

삼상 380V

가습용량

15[kg/h]

소비전력

11.3[kW]

정격전류

29.5[A]

17.1[A]

적용실린더

CY015-2

CY015-3

제어전원

단상 220-240VAC 60Hz / TR 내장(380V)

급수규격

1/4인치 동관, 2~8[bar]

배수규격

ID22[mm]내열호스, 8ℓ/min

습도센서

SMX-RA-A4, 4~20mA

송풍팬

풍량 : 4.2CMM, 48dB

가로x세로x높이 / 중량

431 x 307 x 910[mm] / 33[kg](높이 260mm 베이스제공)
