product Image

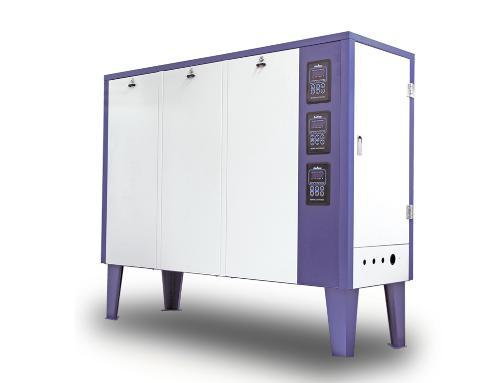

Humidifier (AH Series)
Model Name
AH135
Series
Humidifier
Data
-
Manufacturer information
provider logo
SEUNGIL ELECTRONICS

Industrial controller, Electrode steam humidifier, Configurable controller, Temperature humidity sensor, Automatic control system, Temperature humidity converter

Problem with product info?
Update request
Manufacturer
SEUNGIL ELECTRONICS
Brand
-
SKU
130094
Product Name
Humidifier (AH Series)
Model Name
AH135
Size
-
Weight
-
Product Details

FEATURES

AH Series products are stand-alone electrode type humidifiers that are designed as the control box integrated structure for user convenience.

They can be easily installed on air conditioning units that are not equipped with humidifiers or in places where humidifiers are needed.

The humidity sensor attached to the unit allows automatic operation by utilizing the external relative signal or humidity valve.

The products consist of the standard type products with the capacity of 2.0kg/h ~ 90kg/h and non-standard products with the capacity of 91 kg/h ~ 360kg/h.





SPEC

AH135-3(7)

Voltage

3P 380-690V

Capacity

135[kg/h]

Consumption

101.3[kW]

Rated current

153.8[A] / 380V

UNIT

OH045-3 X 3 Cycle

Control power

1P 220VAC 60Hz / by Transformer (380V)

Control mode

Remote On/Off Signal 3Step

Water supply

15A Socket

Drainage

25A Socket

WxDxH / Weight

1,500 x 520 x 1,260[mm] / 158[kg]

SEUNGIL ELECTRONICS
Industrial controller, Electrode steam humidifier, Configurable controller, Temperature humidity sensor, Automatic control system, Temperature humidity converter
Seungil Electronics was founded in 1987 and as a specialist in the HVAC field, has been providing the finest quality products such as Electrode steam humidifiers, Configurable controllers, HVAC transmitters and Monitoring systems. Based on the 25 years’ experience, Seungil Electronics has achieved a sustainable growth in Korean market as well as the global network of more than 20 countries. Our aim is to serve RIGHT products to RIGHT customers. For that aim, we strive to provide dependable performance of our equipment and customer service. With Seungil Electronics, you can get a trustful reliability and attractive performance at a reasonable price.
