This product is manufactured by
SEUNGIL ELECTRONICS
Manufacturer information
SEUNGIL ELECTRONICS
Industrial controller, Electrode steam humidifier, Configurable controller, Temperature humidity sensor, Automatic control system, Temperature humidity converter
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SEUNGIL ELECTRONICS
Brand
-
SKU
130113
Product Name

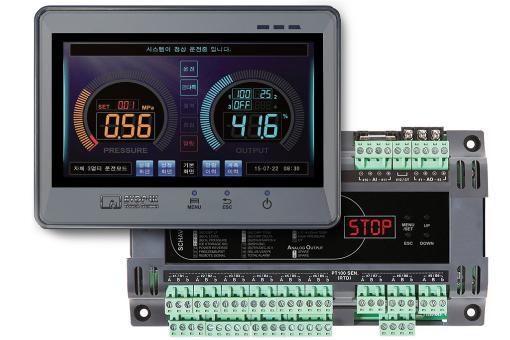

Condensing unit - SCHAV-RC-C9
Model Name
-
Size
-
Weight
-
Product Details
SCHAV-RC-C9 [Direct expansion type AHU - Water chilled]
|
Power |
100-240VAC 50/60Hz |
|||
|
I/O |
DI |
16 points(24VDC) |
||
|
DO |
17 points(250V 3A) SSR |
|||
|
AI |
9ch(PT100Ω) 2ch(4-20mA) 1ch(CT) |
|||
|
AO |
2ch(4-20mA or 0-10VDC) |
|||
|
Comm. |
1ch Master / Slave 1ch RS-485 1ch Display 1ch Remote Display |
|||
FEATURES
Applicable to various compressors, optimized logic for stable and efficient compressor control. Multi I/O port enables cost reduction without additional sequence circuit. Recommended for cold storage unit control, available to control maximum 3 rooms by 1 controller.
DIMENSIONS
DISPLAY UNIT
Industrial controller, Electrode steam humidifier, Configurable controller, Temperature humidity sensor, Automatic control system, Temperature humidity converter
Seungil Electronics was founded in 1987 and as a specialist in the HVAC field, has been providing the finest quality products such as Electrode steam humidifiers, Configurable controllers, HVAC transmitters and Monitoring systems.
Based on the 25 years’ experience, Seungil Electronics has achieved a sustainable growth in Korean market as well as the global network of more than 20 countries.
Our aim is to serve RIGHT products to RIGHT customers. For that aim, we strive to provide dependable performance of our equipment and customer service. With Seungil Electronics, you can get a trustful reliability and attractive performance at a reasonable price.
