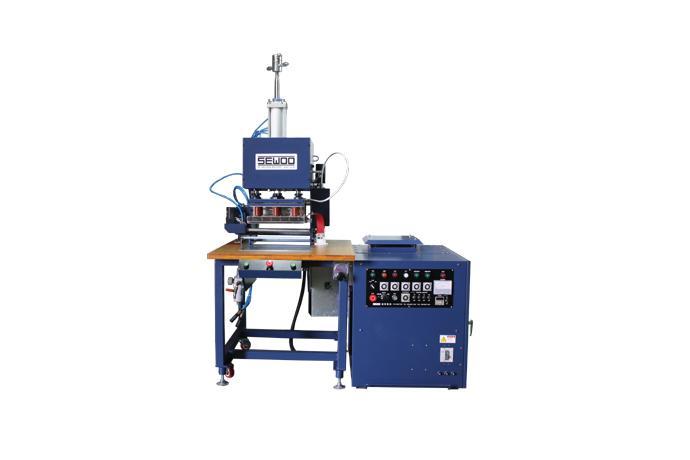

SW-MG

Marking is required for various kinds

of plastic goods processes. Conventional

machines have only been used for

flat printing and hot stamping purpose

but this machine multipurpose of the

three dimensional effect operations

are possible by turning the

change over switch

SPECIFICATION

- Power Source : 220/380V 3Φ 60Hz

As per customer's instructions(overseas)

- MAX. Power Consumption : 10KVA

- MAX. High Frequency Output : 5kW

- Operating Frequency : 40.68MHz

- Oscillator Tube : 7T85RB

- Rectifier : Silicon diode

- Safety Device : Ultra sensitive

arc suppressor, O.C.R

- Max. Pressure : 471Kgf

- Pressure Device : Pneumatic cylinder

direct pressing (2 step)

- Stroke : 125mm

- Size of Electrode : 200 x 350mm

- Size of Platen : 350 x 430mm

- Foil Feeding Device : Pneumatic cylinder

- Foil Winding Device : Motor drive

- Heater : 200W x 6 (Φ16 x 170L)

- Overall Dimensions : 1550x1150x1940 mm
