Use
TH-050 chain is applicable to harsh conditions such as preprocessing lin, freezing line, drying line, painting line, ceramic line etc.

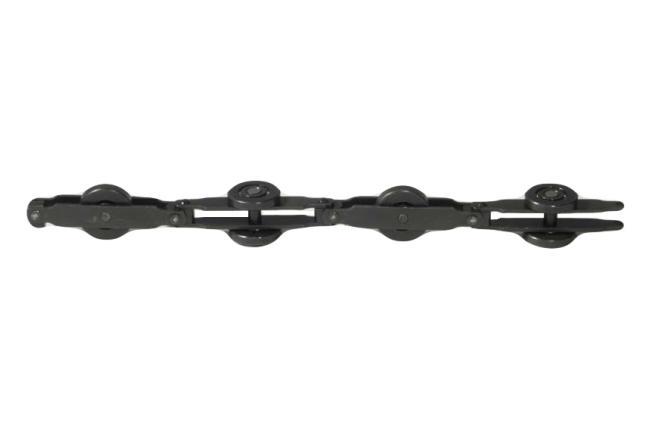

Specification of TH-050 Chain
|
Dimension |
Chain Pitch |
Chain Tension allowance |
Breaking load |
Chain weight |
Max allowable load per Hanger |
|
TH-050 Chain Speicification |
150mm |
500kg |
5,000kg |
4.2kg/M |
Single: 25kg U: 100kg |
|
Min Hanger pitch |
Standard radius of curvature of rail |
Max speed |
|
300mm |
R600 over |
15m/min |
TH-050 CHAIN for POWER & FREE CONVEYOR(Special type)
3) TH-050 Drive Unit
Sprocket type provides easy and simple maintenance, and also caterpillar type is applicable upon customer's need. In order to chase proper motor and gear reducer, customer's need to calculate chain tension according to Lay-out

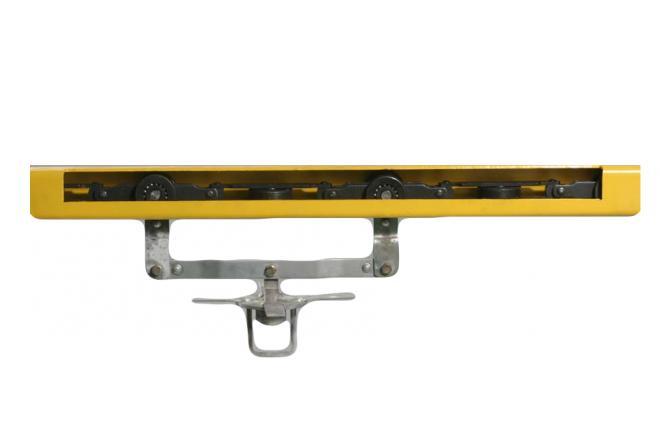

4) Hanger Parts
