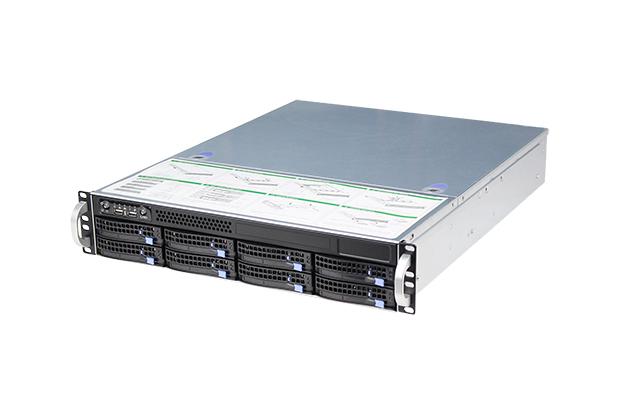

product Image
64CH Network Video Recorder
Model Name
FWR228-01N
Data
Catalog-SEYEON TECH-NVR-32CH Network Video Recorder-FWR224-01N
Manufacturer information
provider logo
SEYEON TECH

Network developer, Web, Camera, Video server, Streaming server, DVR

Problem with product info?
Update request
Manufacturer
SEYEON TECH
Brand
-
SKU
137512
Product Name
64CH Network Video Recorder
Model Name
FWR228-01N
Size
-
Weight
-
Product Details

FWR228-01N is a 19” rack type stand-alone Network Video Recorder. Supports H.265, H.264 and M-JPEG streaming from FlexWATCH cameras and others supporting ONVIF. Up to 64Ch IP cameras can be registered with 480fps@2M Full-HD live view from video output(HDMI, VGA, BNC) and 1920fps@2M Full-HD for real-time recording up to 64 IP cameras with 8 internal SATA connection up to 64TB(8x8TB) is supported. It also supports RAID 5 as an option for professional system Integration market which requires secure recording any time. FWR228-01N is the best IP solution for large scale system Integrator anytime, anywhere.



Information

• 64Ch. Streaming

• Real time live viewing
    - Max. 480fps @ FULL-HD(1920x1080), 480fps @ D1

• Real time recording
    - Max. 1920fps @ FULL-HD(1920x1080)

• Supports H.265 / H.264 / MJPEG codec

• Video, Audio, PTZ, DI/DO control

• 1 HDMI / 1 VGA output for local display

• 3 USB port for mouse / keyboard etc (USB 2.0 x 2 / USB 3.0 x 1)

• 64TB (Max. 8TB x 8HDD) support

• Support RAID 5 as an option

• 4K Recording and Playback






Specifications

[ NVR ]

Max. Channel : 64Ch. IP Cameras



[ Video ]

  • Max. Streaming Rate : Max. 480fps @ Full-HD / Max. 480fps @ D1
  • Supported Codec : H.265, H.264, MJPEG
  • Streaming Function : Retransmission (Proxy)
  • PTZ : Remote PTZ control



[ Recording ]

  • Max. Recording Rate : Max. 1920fps @ Full-HD or 4K
  • Stream : Video, Audio, Data
  • HDD Support : Supports 8 SATA HDDs up to 8TB / each ( Max.64TB )
  • RAID : RAID 5 Supports (Optional)
  • Condition : Always, Motion, Event, Schedule



[ Interface ]

  • Video Out : 1 HDMI, 1 VGA
  • Audio In/Out : 2 way (1 in, 1 out)
  • Audio Compression : 8bit G.711, 8Khz, 8Kbyte/sec
  • Alarm In/Out : 16 DI, 4 DO (Direct On/Off)
  • Serial Port : RS-232C
  • Peripherals : USB2.0 x 2 + USB3.0 x 1



[ Network ]

  • WAN (Ethernet) : 10/100/1000-base-T Ethernet (auto sensing)
  • LAN (Ethernet) : 10/100/1000-base-T Ethernet (auto sensing)
  • Protocol : HTTP, TCP/IP, UDP, FTP, Telnet, RARP, DHCP, NTP, SMTP client, uPNP And etc.
  • Viewer : Browsers (Microsoft Internet Explorer), CMS, VLC
  • Player : Browsers (Microsoft Internet Explorer), CMS, VLC
  • Dynamic IP : DDNS (www.ipcctvdns.com)
  • Smart Solution : FlexWATCH Mobile (iOS, Andriod), IPCAMVISION (iOS, Android)
  • Security : IP Filtering, Encrypted & Basic Authentication, HTTPS,
  • Management White List



[ Hardware ]

  • System : 32bit Embedded Linux, ARM Cortex A17 quad-core@maximum 1.4 GHz, SDRAM 256Mbyte, NAND Flash 128MBytes
  • Approvals : KC, FCC, CE, RoHS, UL
  • Working Condition : 0℃ ~ +50℃ (32℉ ~ 122℉), 10% ~ 80% RH
  • Power Supply : INPUT : 100-240VAC, 50~60Hz
  • OUTPUT : 12VDC @ 17A
  • Power Consumption : Max. 300W
  • Dimension : 440(W) x 550(D) x 88(H) mm
  • Weight : About 8,500g without HDD






Dimension
