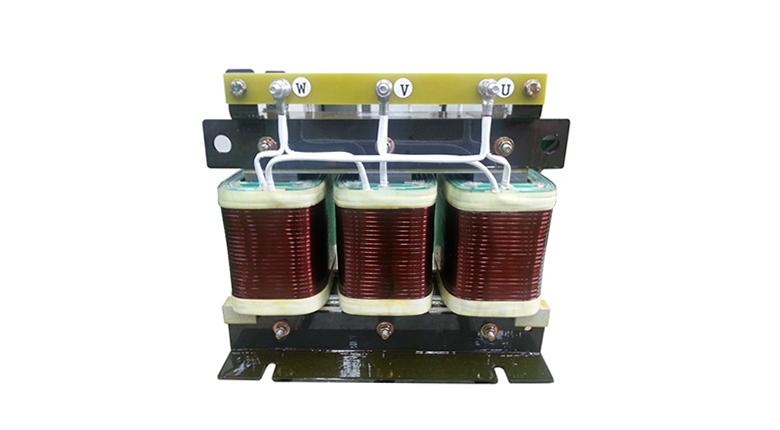

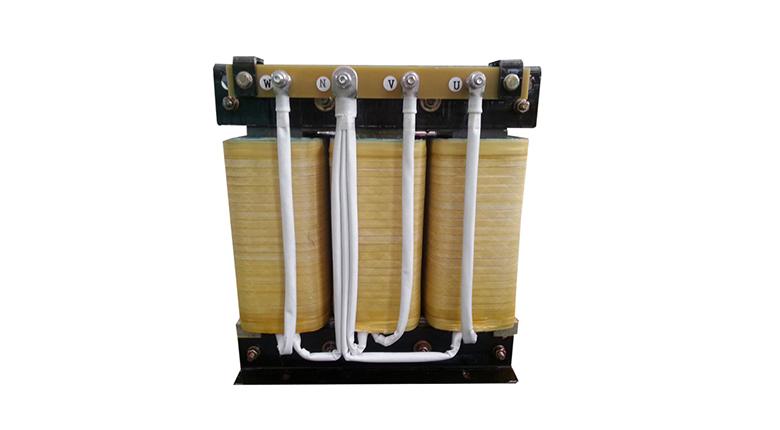

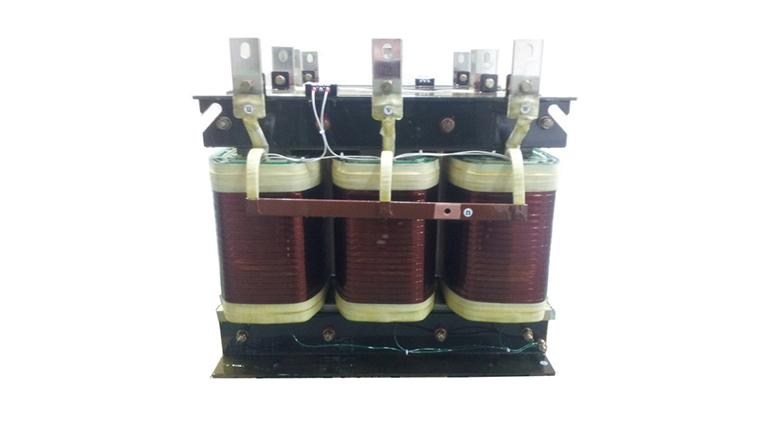

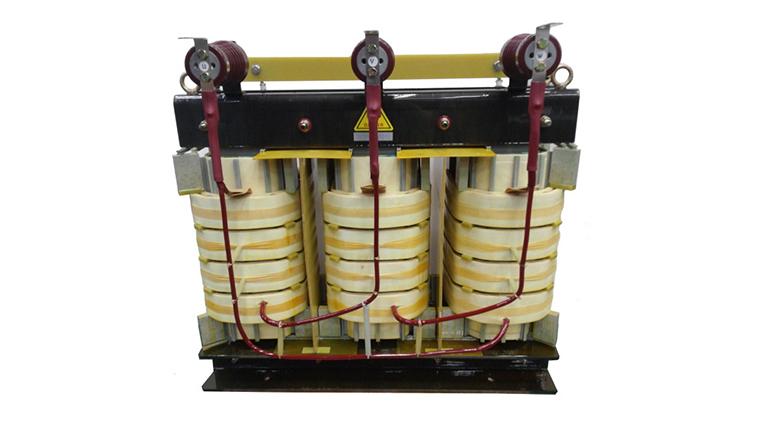

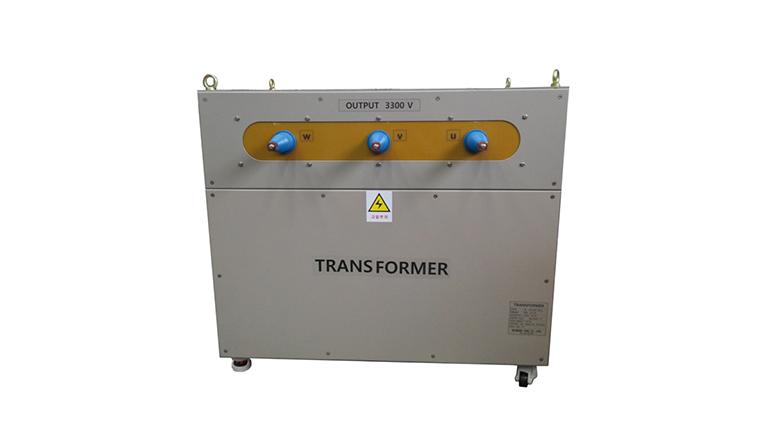

Three-Phase Transformer
Model Name
-
Series
Transformer
Data
-
Manufacturer information
provider logo
Shin Han EPSTransformer, Reactor, Core, Stabilizer and Mold manufacturer and supplier
Problem with product info?
Update request
Manufacturer
Shin Han EPS
Brand
-
SKU
39352
Product Name
Three-Phase Transformer
Model Name
-
Size
-
Weight
-
Product Details

Without the use of oil for insulation and cooling, the products are treated with the impregnation with varnish after manufacturing with heat-resistant materials. Our transformers have no risk of explosion and fire, and are easy to maintain due to their small appearance.
The designs of our company’s transformers are optimized according to the type of load equipment and its applications, thus our products bE/Ing manufactured through ordered production 100%.



Types Dry type / 3Φ.3-1Φ
Class of insulation E, B, F, H Class
Input voltage 0~6600V (order production)
Output voltage 0~6600V (order production)
Capacity 500VA~2MVA
Applications For power supplying and operating
Features – High efficiency, low noise
– 3-phase lottery type
– Ensure reliability and safety

Shin Han EPS Three-Phase Transformer

(Unit: mm)
Name Specifications W D H
 Dry Type
Transformers
3P 1KVA 380V/220V Yd1 200 130 180
3P 2KVA 380V/220V Yd1 250 180 240
3P 3KVA 380V/220V Yd1 290 190 250
3P 4KVA 380V/220V Yd1 340 220 300
3P 10KVA 380V/220V Yd1 360 230 300
3P 20KVA 380V/220V Yd1 450 280 400
3P 30KVA 380V/220V Yd1 460 350 460
3P 50KVA 380V/220V Yd1 520 410 520
3P 50KVA 380V/220V Yd1 600 450 600
3P 100KVA 380V/220V Yd1 700 450 600
3P 200KVA 380V/220V Yd1 800 500 750
3P 500KVA 380V/220V Yd1 1050 650 1000
* The above products are some of our products, and they can be changed according to customers’ requests.
