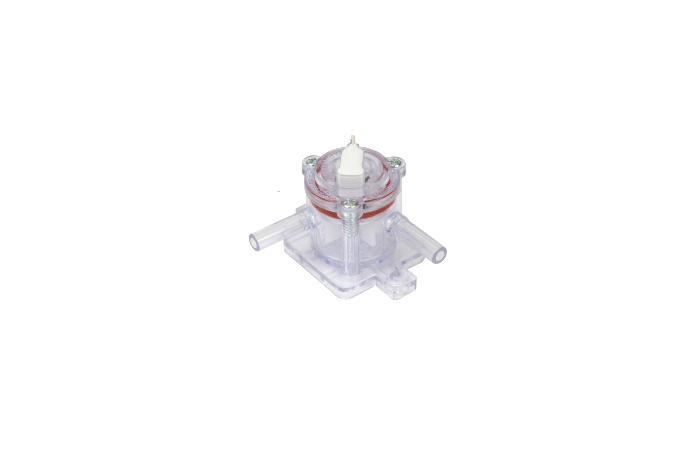

Model | SMWF-0420 H29C | ||
---|---|---|---|
Use | 1.This sensor is used in water flow sensing. 2.This sensor has application to gas boiler and instantaneous warm-water appliance and water filtering appliance. |
||
Features | 1.This sensor has excellent character in low flow rate. 2.The out pulse frequency has linear character in flux change. This sensor has a half-permanent life by high sensitivity semiconductor sensor. |
Life cycle : 100,000 cycles - Life cycle test-condition - 1. Water-flowing : 5sec 2. Water-stop flowing : 5sec 3. Water temperature : Room temperature (20℃ ± 10) 4. Test pressure : More than 3bar 5. Range of Flow rate : 0.5 ~ 2.0 ℓ/min 6. IP degree : IP65
