product Image

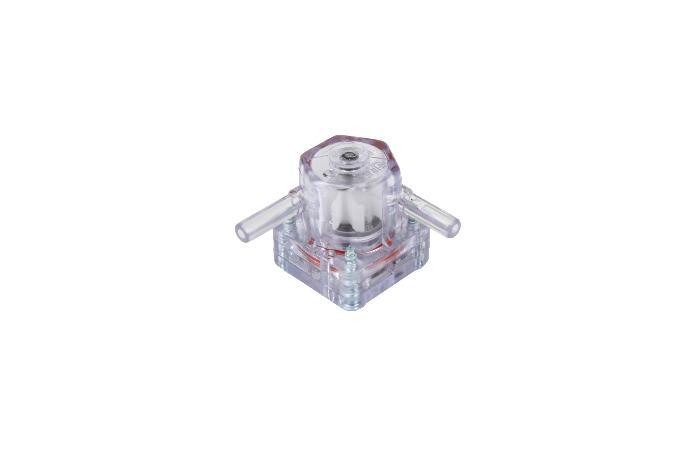

Micro Water Flow Sensor
Model Name
SMWF-0420A (NSF)
Series
Water Flow Sensor
Data
Spec micro flow sensor SMWF-0420A
Manufacturer information
provider logo
Shineui Entec

Explosion switch, Pressure sensor, Flow sensor, Wind pressure switch, Flow switch, Reducing valve, Three way valve and more

Problem with product info?
Update request
Manufacturer
Shineui Entec
Brand
-
SKU
38988
Product Name
Micro Water Flow Sensor
Model Name
SMWF-0420A (NSF)
Size
-
Weight
-
Product Details

Model SMWF-0420A
Use 1.This sensor is used in water flow sensing.
2.This sensor has application to gas boiler and instantaneous warm-water appliance and water filtering appliance.
Features 1.This sensor has excellent character in low pressure.
2.The out pulse frequency has linear character in flux change.
This sensor has a half-permanent life by high sensitivity semiconductor sensor.



Life cycle : 100,000 cycles - Life cycle test-condition - 1. Water-flowing : 5sec 2. Water-stop flowing : 5sec 3. Water temperature : Room temperature (20℃ ± 10) 4. Test pressure : More than 3bar 5. Range of Flow rate : 0520 : 0.5 ~ 2.0 ℓ/min 6. IP degree : IP65
