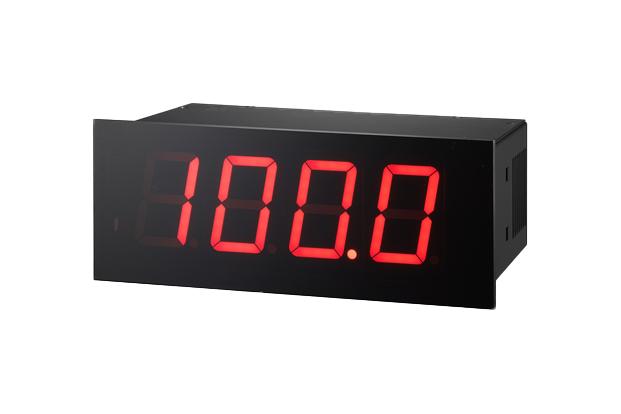

product Image
Large size indicator
Model Name
SHN-3700
Data
Catalog-Shinho System-Indicator-Large size indicator-SHN-3700
Manufacturer information
provider logo
SHINHO SYSTEM

Industrial measuring instrument manufacturer, Signal converter, Signal system, Digital indicator, Surge arrester and more

Problem with product info?
Update request
Manufacturer
SHINHO SYSTEM
Brand
-
SKU
134622
Product Name
Large size indicator
Model Name
SHN-3700
Size
-
Weight
-
Product Details

SHN-3700/3800 is large size temperature/humidity indicator that accepts temp & humidity sensor input and displays engineering values and provides analog output.

ㆍIt displays temp/humidity simultaneously (Dual indicating)

ㆍTransformer isolation type.

ㆍ1 or 2 outputs are available from 1 input.



Products Detail

SHN-3700 (판넬형)
MODEL INPUT1 INPUT2 OUTPUT POWER

700 : Wall Mounting (1단)

Multi(mA ,V , mV ,Pt100Ω , T/C , 2-Wire)

Multi(mA ,V , mV ,Pt100Ω , T/C , 2-Wire)

1~5V (1단)

AC 95V~250V

700 : Panel Mounting (1단)



4~20mA (1단)



800 : Wall Mounting (2단)



1~5V/1~5V (2단)




4~20mA/4~20mA(2단)




2-Alarm(1단 ,2단)





Technical Data

Model SHN-3700 ,3800 Series Function Transmit DC signal in isolated conditon
Input mA, RTD, 2-Wire, Potentiometer, T/C Output DC Siganl (4-20mA, 1-5V) Max : 2ch
Power AC 95V~250V Accuracy 0.1% / Full scale
Display LCD Response Time 0.5 sec (0~90%)
Front Adjustment Zero and Span 5% Weight About 1.5kg / 2.0kg
Mounting Wall mounting or Panel mounting Dimensions(mm)

SHN-3700 – W240 * H96 * D 151 Panel Cutting Size W230 * H82.8 *

SHN-3800  -W350 * H250 * D 90
