product Image
유압모터
Model Name
SIP
Data
Gear Pump
Manufacturer information
provider logo
Shinjin Precision

Power steering unit for forklift and tractor manufacturer, Gear pump, Brake valve, Transmission valve

Problem with product info?
Update request
Manufacturer
Shinjin Precision
Brand
-
SKU
37499
Product Name
유압모터
Model Name
SIP, SEP, SMP20
Size
-
Weight
-
Product Details

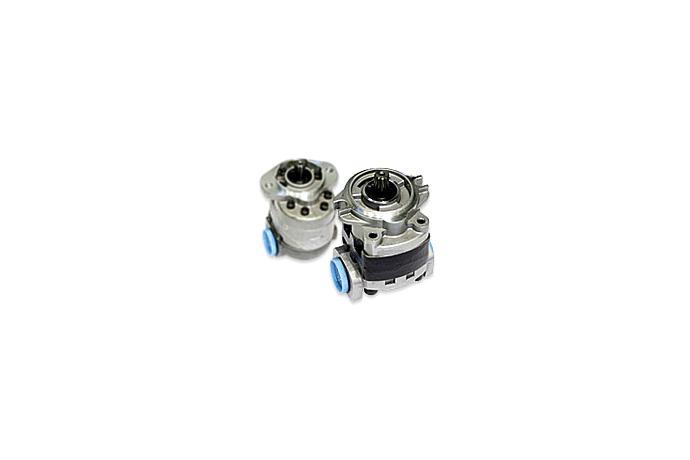

Shinjin Precision 유압모터 SIP, SEP, SMP20

Gear pump is one of the most common types of pumps for hydraulic fluid power applications. They carry pressurized hydraulic fluid to drive actuator such as hydraulic cylinder and hydraulic motor, etc. As the gears rotate they separate on the intake side of the pump, creating suction which is filled by fluid.
The fluid is carried by the gears to the discharge side of the pump, where the meshing of the gears displaces the fluid.


Features

Series Features
SIP

SIP pumps are built with aluminum body and hardened steel gears in order for the excellent performance.

A wide variety of options are available to meet specific application requirements worldwide.

SEP

SEP pumps are built with cast iron body and hardened steel gears in order for the

excellent high temperature characteristics. They are designed to provide reliable,

long life service under rugged conditions with the excellent hydraulic performance,

flexibility, high efficiency, low and high speed operation, low noise performance.

SMP20

SMP20 pumps are consist of a pair of gears supported in bearing bushings

and extruded body in high resistance aluminum alloy, aluminum die casting front cover and rear cover.

SMP20 pumps are suitable for multiple setup, whereby the drive shaft for

the 1st pump is extended to a second and even a 3rd pump.




Application

Series Application
SIP

SIP Pumps are designed to be suitable for forklift trucks, skid steer loaders,

wheel loaders, etc. Priority valve or relief valve options are available.

SEP

SEP Pumps are designed to be suitable for use in a wide variety of applications,

including industrial, construction and agricultural machinery.

SMP20

SMP20 Pumps are designed to be suitable for use in a wide variety of industrial

and agricultural applications such as forklift truck, Excavator, tractor, etc.




Specification

Series Displacements Speed Pressure
SIP from 11.9 ㎤/rev to 32 ㎤/rev from 600 rpm to 2700 rpm Max. continuous 250 bar
Max. peak 280 bar
SEP from 11.9 ㎤/rev to 32 ㎤/rev from 600 rpm to 2700 rpm Max. continuous 250 bar
Max. peak 280 bar
SMP20 from 4.8 ㎤/rev to 31 ㎤/rev from 600 rpm to 3000 rpm Max. continuous 250 bar
Max. peak 280 bar
