SPECIFICATION
당사에서 생산중인 WORM TYPE ROTAOR는 실용신안 의장등록이 되어있습니다.
MODEL |
SK-ROT 300N |
|
Load Pipe |
25A ~ 300A | |
Capacity | 1000KG | |
Roll Size | Ø140 × 180L | |
Turning Speed | 0~1635mm/Min | |

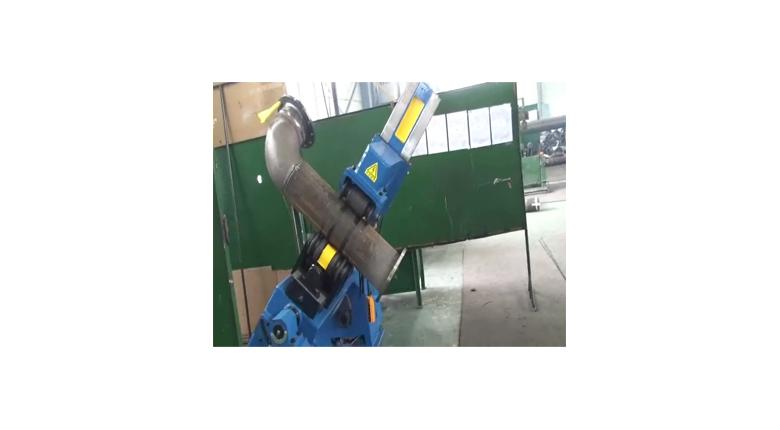

Tilting Angle | ±45° | |
Control System | Main panel & Emergency Switch Foot Switch |
|
Safety Device | Tilting Safety Pin Fitting | |
Tilting Worm Reducer Protection |
Worm Reducer Shaft Fitting(Bush Type) | |
Turning Roll Bearing | Assemble a Bearing Cover | |
Motor | Lifting | 0.75kw |
Turning |
0.75kw |
|
Tilting |
0.75kw |
|
Measurement | Length | 1540mm |
Height |
1825mm |
|
Width |
1080mm |
|
Weight | 1200kg |
MODEL |
SK-ROT 600N |
|
Load Pipe |
50A ~ 600A | |
Capacity | 2000KG | |
Roll Size | Ø150 × 210L | |
Turning Speed | 0~1300mm/Min | |
Tilting Angle | ±45° | |
Control System | Main panel & Emergency Switch Foot Switch |
|
Safety Device | Tilting Safety Pin Fitting | |
Tilting Worm Reducer Protection |
Worm Reducer Shaft Fitting(Bush Type) | |
Turning Roll Bearing | Assemble a Bearing Cover | |
Motor | Lifting | 1.5kw |
Turning |
1.5kw |
|
Tilting |
1.5kw |
|
Measurement | Length | 1740mm |
Height |
2335mm |
|
Width |
1120mm |
|
Weight | 1500kg |
MODEL |
SK-ROT 1000N |
|
Load Pipe |
150A ~ 1000A | |
Capacity | 3000KG | |
Roll Size | Ø150 × 210L | |
Turning Speed | 0~1000mm/Min | |
Tilting Angle | ±45° | |
Control System | Main panel & Emergency Switch Foot Switch |
|
Safety Device | Tilting Safety Pin Fitting | |
Tilting Worm Reducer Protection |
Worm Reducer Shaft Fitting(Bush Type) | |
Turning Roll Bearing | Assemble a Bearing Cover | |
Motor | Lifting | 1.5kw |
Turning |
1.5kw |
|
Tilting |
1.5kw |
|
Measurement | Length | 1950mm |
Height |
2570mm |
|
Width |
1230mm |
|
Weight | 1800kg |
