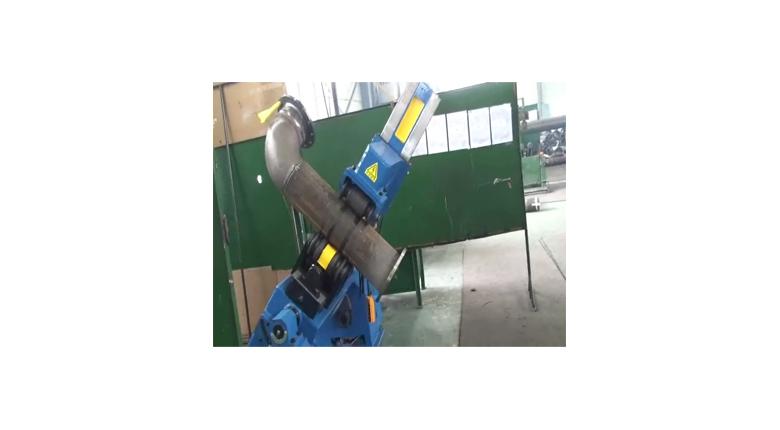

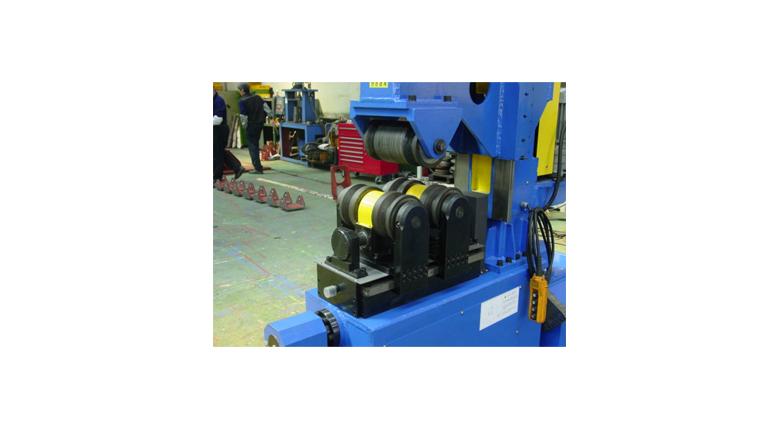

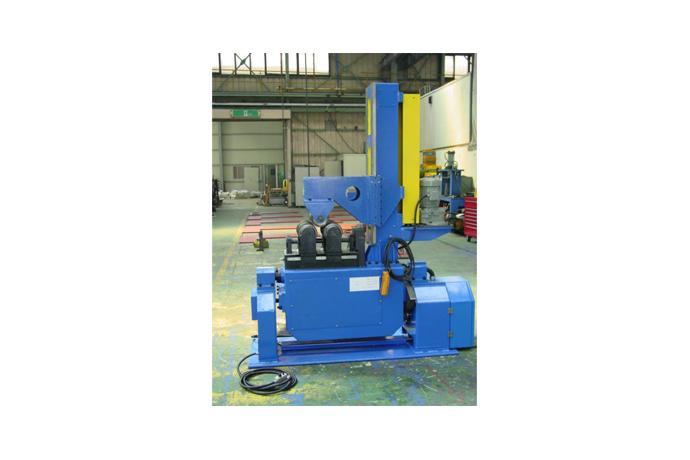

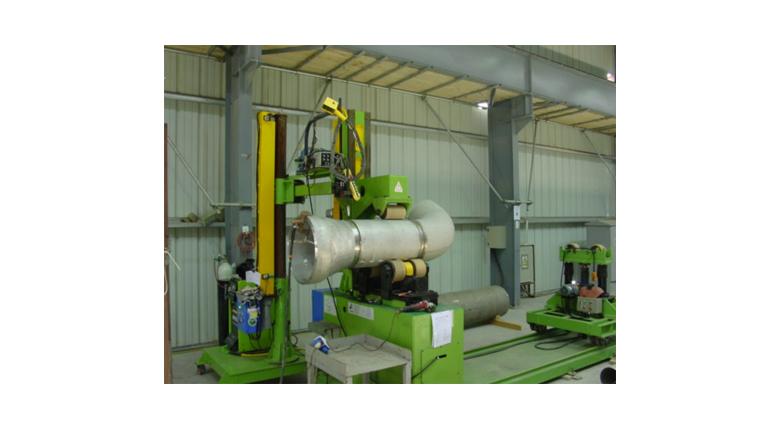

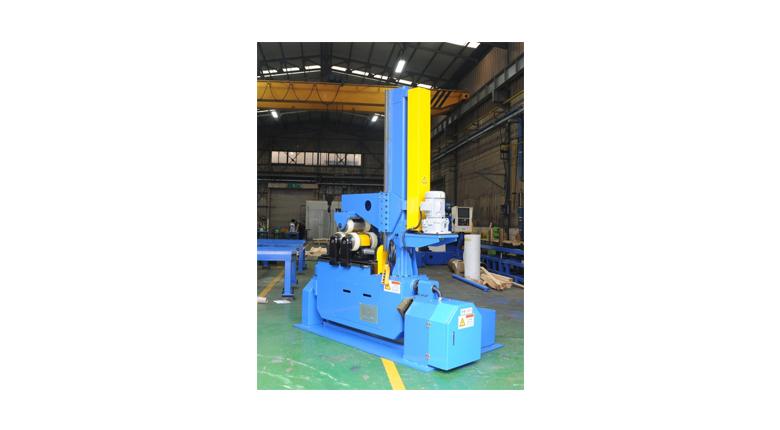

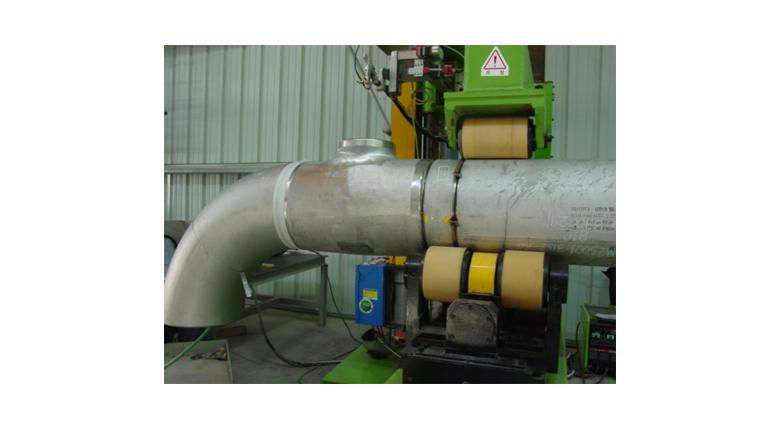

Rotator (Worm Type)
Model Name
SK-ROT 300/600/1000A
Series
Welding Aid Facilities
Data
-
Manufacturer information
provider logo
SHINKWANG AUTO

Spool manufacturer, High frequency bender, Pipe bender, Rotator, Pipe coaster, Facing machine and more

Problem with product info?
Update request
Manufacturer
SHINKWANG AUTO
Brand
-
SKU
12929
Product Name
Rotator (Worm Type)
Model Name
SK-ROT 300/600/1000A
Size
-
Weight
-
Product Details

SPECIFICATION

당사에서 생산중인 WORM TYPE ROTAOR실용신안 의장등록이 되어있습니다.

MODEL

SK-ROT 300N

Load Pipe

25A ~ 300A
Capacity 1000KG
Roll Size Ø140 × 180L
Turning Speed 0~1635mm/Min
Tilting Angle ±45°
Control System Main panel & Emergency Switch
Foot Switch
Safety Device Tilting Safety Pin Fitting
Tilting Worm Reducer
Protection
Worm Reducer Shaft Fitting(Bush Type)
Turning Roll Bearing Assemble a Bearing Cover
Motor Lifting 0.75kw
Turning

0.75kw

Tilting

0.75kw

Measurement Length 1540mm
Height

1825mm

Width

1080mm

Weight 1200kg
MODEL

SK-ROT 600N

Load Pipe

50A ~ 600A
Capacity 2000KG
Roll Size Ø150 × 210L
Turning Speed 0~1300mm/Min
Tilting Angle ±45°
Control System Main panel & Emergency Switch
Foot Switch
Safety Device Tilting Safety Pin Fitting
Tilting Worm Reducer
Protection
Worm Reducer Shaft Fitting(Bush Type)
Turning Roll Bearing Assemble a Bearing Cover
Motor Lifting 1.5kw
Turning

1.5kw

Tilting

1.5kw

Measurement Length 1740mm
Height

2335mm

Width

1120mm

Weight 1500kg
MODEL

SK-ROT 1000N

Load Pipe

150A ~ 1000A
Capacity 3000KG
Roll Size Ø150 × 210L
Turning Speed 0~1000mm/Min
Tilting Angle ±45°
Control System Main panel & Emergency Switch
Foot Switch
Safety Device Tilting Safety Pin Fitting
Tilting Worm Reducer
Protection
Worm Reducer Shaft Fitting(Bush Type)
Turning Roll Bearing Assemble a Bearing Cover
Motor Lifting 1.5kw
Turning

1.5kw

Tilting

1.5kw

Measurement Length 1950mm
Height

2570mm

Width

1230mm

Weight 1800kg
