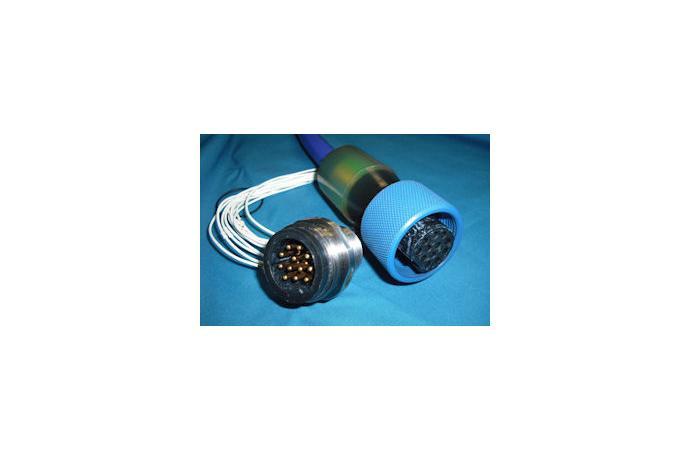

HCC connectors
Model Name
-
Series
Underwater Cable & Connector
Data
HCC05 DATA SHEET
Manufacturer information
provider logo
Shinyang TechnologyMarine and weather measuring equipment and Water quality automatic measuring equipment manufacturer
Problem with product info?
Update request
Manufacturer
Shinyang Technology
Brand
-
SKU
38182
Product Name
HCC connectors
Model Name
Size
-
Weight
-
Product Details

Surface Mateable
Depth rated to 2,440 MSW (8000 FSW)
Bulkhead Mount design available as standard
Pin densities from 6 to 12 ways
Voltage ratings up to 1000 Volts
Current rating up to 8 Amps
Available in 316 Stainless Steel as standard
Optional Earth Bonding
Cathodic Delamination Protection as standard
Cable moulding options include Polyurethane and Polyethylene


Features

Cost effective solution
Easy to use
Fast delivery lead times
Built on extensive track record of the HRS range of connectors
Ideal for project work where high quality and low cost are paramount
