product Image

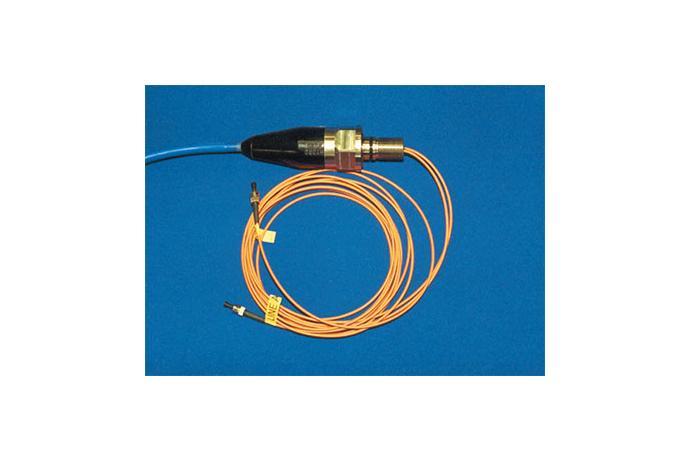

Optical Penetrators - Hydro Group
Model Name
-
Series
Underwater Cable & Connector
Data
Optical Penetrators Data Sheet
Manufacturer information
provider logo
Shinyang Technology

Marine and weather measuring equipment and Water quality automatic measuring equipment manufacturer

Problem with product info?
Update request
Manufacturer
Shinyang Technology
Brand
-
SKU
38201
Product Name
Optical Penetrators - Hydro Group
Model Name
-
Size
-
Weight
-
Product Details

Features

ㆍOur fully blocked penetrators are available in both singlemode and multimode with all optical or optical electrical combinations
ㆍA wide variety of metal body mounting options are available including NPT, UNF, Flanged, Smooth bore and other options on request
ㆍ1 mete Inboard tails are terminated with ST connectors as standard and FC/PC and FC/APC on request
ㆍOutboard connection can be to customer defined cable length with polyurethane or polyethylene moulding, customer specified hose for oil filled applications or complete assemblies with penetrators at both ends or penetrator / connectors configurations
ㆍOur penetrators have been pressure tested at up to 10,000 psi


ㆍHigh Integrity field proven design
ㆍConnectors and penetrator samples have been shock tested for military and high vibration applications
ㆍFull pressure blocked penetrator design assures leak tight system
ㆍNon expanded beam inserts ensure optimum system design with low losses allows you to use your optical budget to the maximum
ㆍWide range of insert options allows for ease of system design
ㆍWide variety of metal component materials allows for non-magnetic and corrosion resistant designs
ㆍEase of connection
