product Image
Cable Splicing Kits - Hydro Group
Model Name
-
Series
Underwater Cable & Connector
Data
-
Manufacturer information
provider logo
Shinyang Technology

Marine and weather measuring equipment and Water quality automatic measuring equipment manufacturer

Problem with product info?
Update request
Manufacturer
Shinyang Technology
Brand
-
SKU
38209
Product Name
Cable Splicing Kits - Hydro Group
Model Name
-
Size
-
Weight
-
Product Details

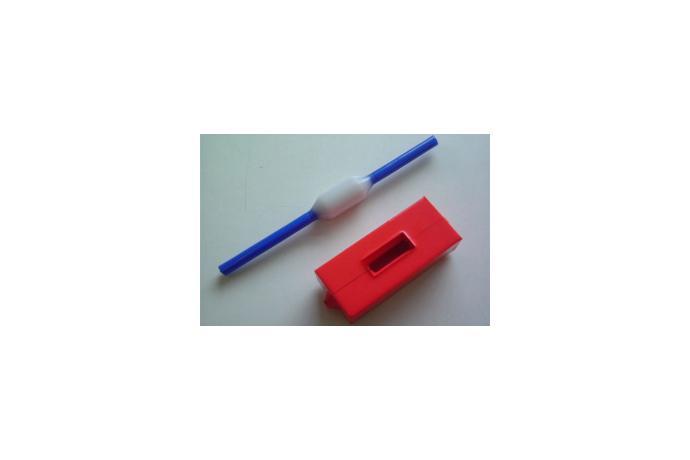

Cable Splicing Kits

Hydro Bond Cable Splicing Kits, manufactured from an extremely tough and durable rubber, offer the customer an infield emergency cable splicing repair system. Four standard moulds are available incorporating specially designed flexible cable grips, which accommodate a variety of cable sizes from 5mm to 32mm in diameter.

Various types of moulds can be designed and supplied on request, I.e. multiple cable entry moulds and 'Y' splices, umbilical cable termination moulds and connector over moulding tools.

Hydro Bond Engineering also supply 'Hydro-Cast' a two component low viscosity cold setting splicing rubber. This material is supplied in pre-measured containers and obviates the need for operators to weigh out the components. Special instructions regarding preparation of cable and metal surfaces are supplied with each batch of the rubber compound.

This Hydro Bond Engineering emergency cable repair system has been devised to enable temporary repairs to be performed 'on site'. The system provides the best possible repair which it is practical to achieve with a cold setting rubber material.

Once the cable conductors have been crimped together and the sheathing prepared for bonding it can be loaded into the mould. The mould is treated with release agent, is opened in 'a book like fashion' and the cable inserted into position.

'Hydro-Cast' two component liquid rubber is then mixed together and poured into the entry slot and allowed to set (1-2 hours). The splice can then be removed from the mould.


Shinyang Technology
Marine and weather measuring equipment and Water quality automatic measuring equipment manufacturer
Shinyang Technology Company was founded in May 2000 by the researchers who were specialized in the electronics instrumentation for oceanography. it has worked hard to establish its reputation as one of the leading companies in the marine and weather measurement system field. Now it combines extensive product range, outstanding quality of customer service, leading technology and experienced staff.  Shinyang has three-business division:  Firstly, it develops and manufactures: own products such as Data buoys, floats and other measurement system for oceanography, meteorology, environmental sciences and industry. To provide better service to customer Shinyang provides various data distribution system using RF communication, satellite, mobile phone and network system based on Internet. Secondly, it Oversea trades: marine engineering of special buoyancy materials for oil and gas drilling and station, protection materials for underwater cable pipeline, various under water special connectors and cable, various components and equipment of the underwater vehicles, current meter, underwater modem, underwater acoustic sensor and weather measuring equipments and sensors it is the exclusive agency. Finally, with expert staff: it provides consulting service about measurement and mooring in deep sea. It develops and manufactures data networking and management system Shinnying is deeply committed to making its product and service convenient and efficient for the basis of better quality of life, cost saving and protection of environment
