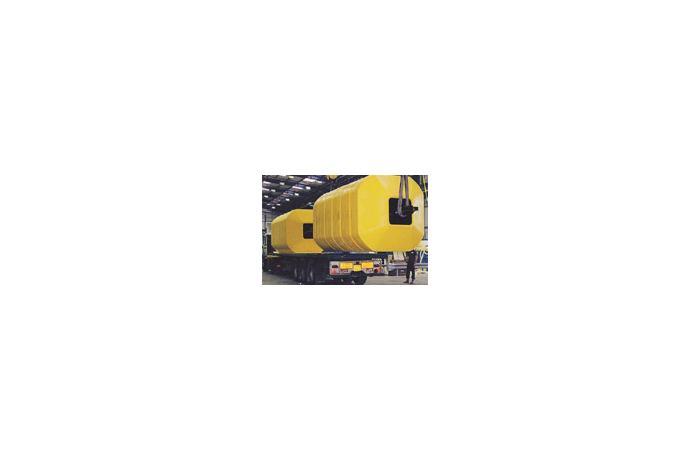

product Image
Subsea Buoyancy - Modular Subsea Buoys
Model Name
-
Series
Special Foam Buoy
Data
Modular Subsea Buoys Data Sheet
Manufacturer information
provider logo
Shinyang Technology

Marine and weather measuring equipment and Water quality automatic measuring equipment manufacturer

Problem with product info?
Update request
Manufacturer
Shinyang Technology
Brand
-
SKU
38236
Product Name
Subsea Buoyancy - Modular Subsea Buoys
Model Name
-
Size
-
Weight
-
Product Details

Safe mooring of floating structures can be required in both shallow and deep water. In most cases this will include chains, wire ropes and one or more subsea mooring or spring buoys. Mooring buoys generally consist of buoyancy element(s) mounted on a steel through member which interfaces with the mooring system.

The flotation core of the buoys varies in density and performance to suit each individual project water depth, e.g. polyurethane foam for shallow water to 80m and composite syntactic foam for subsea operations to 500msw (North Sea), 2000msw (Africa/Brazil) and 3000msw (Gulf of Mexico).

Our Modular Subsea Buoys are suitable for mooring a wide variety of structures such as oil tankers, production vessels, semi-submersible drilling rigs or deepwater platforms etc.



Mini Modular Buoy (250 msw rated)
Net Buoyancy (kg) No end modules No centre modules Total no
1000 2 - 2
2000 2 1 3
3000 2 2 4
4000 2 3 5
End module:                      L: 1740   W: 1740   H:600
                                             Nominal net buoyancy 750kg
Centre module:                 L: 1740  W: 1740   H: 675
                                             Nominal net buoyancy 1000kg



Standard Modular Buoy (250 msw rated)
Net Buoyancy (kg) No end modules No centre modules Total no
5000 2 - 2
7500 2 1 3
10000 2 2 4
12500 2 3 5
15000 2 4 6
End module:                      L: 2350   W: 2350   H:1100
                                             Nominal net buoyancy 2800kg
Centre module:                 L: 2350  W: 2350   H: 750
                                             Nominal net buoyancy 2500kg



Mega Modular Buoy (250msw rated)

Net Buoyancy (kg) No end modules No centre modules Total no
10000 2 - 2
15000 2 1 3
20000 2 2 4
25000 2 3 5
30000 2 4 6
End module:                      L: 3000   W: 3000   H:1300
                                             Nominal net buoyancy 5500kg
Centre module:                 L: 3000  W: 3000   H: 1000
                                             Nominal net buoyancy 5000kg



all figures are nominal and subject to change

Features :
- We design and manufacture a wide range of modular subsea buoys from 1 to over 100te
- The modular design (up to 6), allows the nett buoyancy to be adjusted to precise operational
  requirements by simply adding or removing component modules
- Should there be damge, the modular design allows for easy repair rather than renewal, only
  in extreme cases of damage is replacement of the affected component module needed
- Each module interlocks via male and female spiggots thus eliminating the risk of modules rotating
