Hybrid Ceiling System

Hybrid Ceiling System

Model Name

Wisdom-P

Series

System Configuration

View AllView All Series

Data

Manufacturer information

Shinyoung For M

Medical equipment manufacturer

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

Shinyoung For M

Brand

SKU

35018

Product Name

Hybrid Ceiling System

Model Name

Wisdom-P

Size

Weight

Product Details

Product Description

Remarkably Well-Designed and Incredibly Convenient

Wisdom-P is designed to facilitate a wide range of procedures through two detectors for clinics or hospitals.
Its compact and clever design delivers high-performance as well as cost-effective
operation through ease-of-use which fully meet the demands on quality and versatility with affordable price.
The overhead tube crane is basically manual, but it includes motorized movement for the z-axis to be synchronized with other radiographic components.

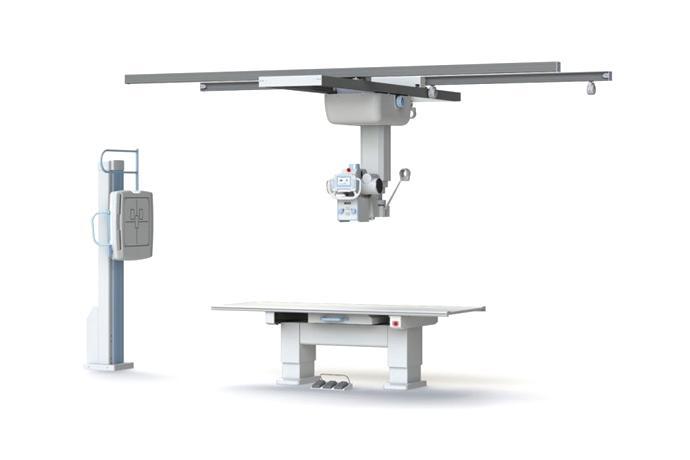

Configuration

Overhead Tube Crane

Wall Bucky Stand

4-Way or 6-Way Patient Table

Ceiling-Mounted Tube Support
Display with color LCD screen on the tube housing
Workflow is enhanced through direct manipulation of examination parameters listed below
- SID (Source-image distance) measurement
- Display angle of tube rotation
- Display of the workplace: Bucky wall stand or table
- Display auto or manual mode
Tube Travel Range	- Vertical travel motorized in auto mode - Vertical travel range: 150cm(59 in.) - Rotation range around the vertical axis: -150° to +180° manual Detent at 0°; ±90° - Rotation range around the horizontal axis: ±150°manual Detent at 0°; ±90°
Horizontal Travel Range	Longitudinal: 332 cm (130.7 in.) with 4 m trolley Transverse: 225 cm (88.6 in.) with 3 m trolley
Power Requirement	UL: 120 VAC, 50/60 Hz, 500 VA CE: 220 ~ 240 VAC, 50/60 Hz, 500 VA

6-Way Patient Table (Manual)
The table can be equipped with cassettes or a mobile flat detector for optimal coverage and high patient throughput
Tabletop Dimensions	220 cm x 80 cm (86.6 in. x 31.7 in.)
Table Height	54.5 cm to 84.5 cm; total lift 30 cm (tabletop)
Tabletop Travel Range	Longitudinal: ±43 cm (±16.9 in.) Transverse: ±12 cm (±4.7 in.)
Detector Travel Range	44 cm (17.3 in.)
Max. Patient Weight	250 kg (551 Ib)
Kick Switch	For table height and float adjustments (Wireless Foot Switch)
Auto-tracking during table height adjustment (Only with ceiling-mounted tube support)	X-ray tube follows table height adjustment; SID (source-image distance) is maintained
Power Requirement	100 ~ 240 VAC, 50/60 Hz, 3A

Wall Bucky Stand (Manual)
The stand can be equipped with cassettes or a mobile flat detector for optimal coverage and high patient throughput
Manual Movement	Vertical travel with electric magnet brake
Vertical Travel Range (central beam- floor)	Max. : 188 cm (74 in.) Min. : 40 cm (15.7 in.)
Power Requirement	24 VDC, 1A

-Specifications subject to change without notice.

Shinyoung For M

Medical equipment manufacturer

When SYFM Co., Ltd. (Shinyoung For M) was established in 1992, we started with a small precision casting factory. It was 1998 when we started dreaming creating new and innovative medical equipments suitable and affordable for every clinics or hospitals. Ever since then, we have been well kwnon as a specialized company on developing and manufacturing in various areas especially in the area of manufacturing medical equipments. We are equipped with the newest facilities to produce all kind of required items to produce our own unique products. Not only OEM, we can assure that we are expert on manufacturing products by ODM (Original Development Manufacturing) system with many years of experience to accomplish various requests from our customers. We will continue putting efforts on developing various techniques of manufacturing products and new technologies of mechanism which are applicatory as well to make all the clients around the world to be satisfied with our products.
