정치소음기 (BSR Checker)
Model Name
-
Series
소음진동 위치추적/분석
Data
-
Manufacturer information
provider logo
Sm Instruments

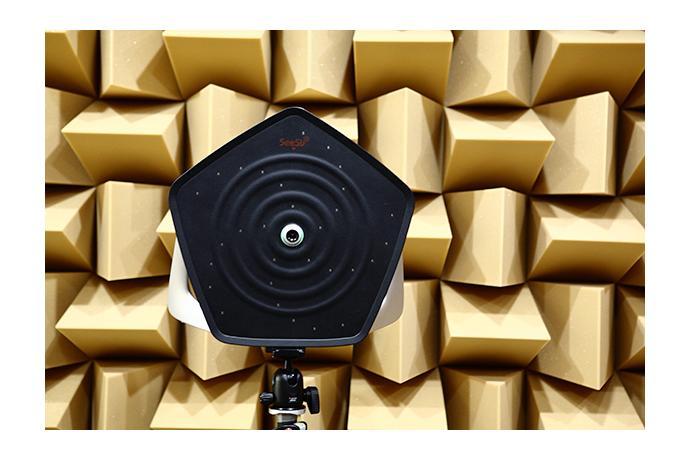

Sound camera, Sound scanner, Wind power generator and more

Problem with product info?
Update request
Manufacturer
Sm Instruments
Brand
-
SKU
36956
Product Name
정치소음기 (BSR Checker)
Model Name
-
Size
-
Weight
-
Product Details

(주)에스엠인스트루먼트 정치소음기 (BSR Checker)

Specification

Sensor 1 - Microphone
Mic. Type Electret Microphone
Number of Mic. 1
Standard Power 4.5 V DC
Sensor 2 – Load Cell
Rated Capacity 0.7 ~ 1.5 mV/V
Rated Output 4
Operating Temp -20 ~ 50 °C
Permission Overload 150%
Limit overload 300%
Data Acquisition and Processing
Sampling Rate Max 41.1 kS/s
Meas. Mode Simple Trigger
Analysis Spectrogram, SPL
Physical Characteristics
Weight 200g
Dimensions 130 x 110 x 30 (mm)

Application

- 기존 감성에 의한 정치 시험 평가 방법의 정량화

- 차량 외장재 및 내장재에서 발생하는 다양한 이음 측정

- 양산 차량 조립 불량상태 검출
