Description
-
Specification

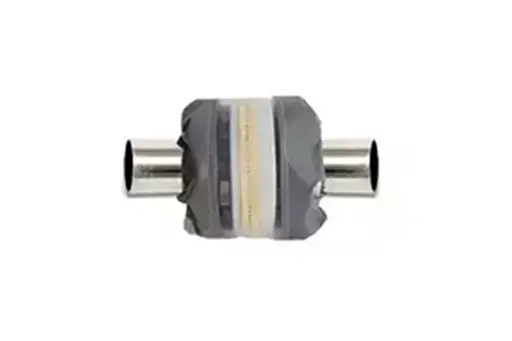

- Material: PTFE coated Fiberglass (Gray, Beige) + PFA (Center, clear), Heat, UV, Chemical resistant
- Max. Temperature: 232 oC
- Max. Pressure: 2.5 MPa (350 psi)
- Flange Ratings: ASME 150 & 300 lb, JIS 5K-20K
| Use | Product Name |
Dimension 1 W(mm) x L(m) |
Detectable Chemicals |
|---|---|---|---|
| Acid/Alkaline detection |
SDT30 | 30 x 30 | Hydrochloric acid, Nitric acid Sulfuric acid, Hydrofluoric acid Phosphoric acid, Acetic acid, etc Sodium hydroxide, Potassium hydroxide, Ammonium hydroxide, etc |
| SDT50 | 50 x 30 | ||
| Organic solvent detection | SST30 | 30 x 30 | Alcohols, Ketones, Esters, Aromatics, etc |
| SST50 | 50 x 30 | ||
| Ammonia detection | SNT15 | 20 x 30 | Ammonia gas, amines |
| SNT30 | 30 x 30 | ||
| Sulfur compound detection |
SHT15 | 20 x 30 | H2S, mercaptans |
| SHT30 | 30 x 30 |
※ Chemical indicator for Safety Spray Shield can be provided separately
