This product is manufactured by
SOLTECH
TOP
Model Name
SFC300-SCSWA
Data
SFC300
Manufacturer information
SOLTECHOptical communication network equipment supplier, Optical hub, Optical converter, Optical modem, Optical link, Optical cable and more
Problem with product info?
Update request
Manufacturer
SOLTECH
Brand
-
SKU
36629
Product Name
[Discontinued] Ethernet/Fast Ethernet Switch HUB
Model Name
SFC300-SCSWA
Size
-
Weight
-
Product Details

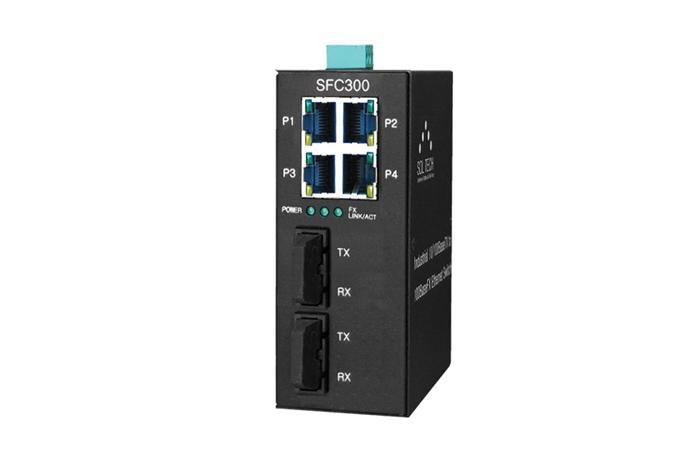

SFC300 시리즈는 100Base-FX 광포트(1,2포트)를 지원하는 Ethernet/Fast Ethernet Switch HUB 입니다.
10/100Base-TX UTP 연결을 위한 RJ-45 커넥터와 100Base-FX 연결을 위한 광커넥터(SC/ST Type)를 갖추고 있습니다.
본 제품은 Auto-Negotiation, Auto-MDIX 모드를 지원하며 최대 2Km(Multi-Mode)에서 20Km~100Km(Single-Mode)까지 Fiber Network를 구축할 수 있습니다.
광 1포트(싱글모드, 20km, WDM) + TP 4포트(10/100Mbps, 100m), 1550nm/1310nm
- 소형사이즈
- 산업현장에 적합한 100Mbps 광스위치
- Din-Rail 설치 지원
- 전원 극성보호 회로 내장
- DC12~48V (터미널 블록) 전원 공급 방식
- TP포트 AUTO MDI/MDI-X 기능
- DIP Switch : 10/100Mbps, Full/Half Duplex, LLCF on/off
- 2K MAX Address table
| 표준 | - standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX/100Base-FX |
| 인터페이스 | - RJ45 포트 | 10/100Mbps 4포트, Auto MDI/MDI-X TP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm (전송거리 100m) |
| - 광포트 | 100Base-FX 1포트 / 100Base-FX 2포트, SC타입 멀티모드 : 62.5/125㎛ (2km) 싱글모드 : 9/125㎛ (20km ~ 100km) | |
| - LED 표시 | Per unit: Power TX Port (Link/Act, FDX/HDX, Speed), FX Port (Link/Act) | |
| 성능 | - 전송속도 | 14,880pps for 10Mbps, 148,810pps for 100Mbps |
| - MAC Address | 2K MAC address table | |
| 동작환경 | - 온도범위 | 동작온도: -40°C ~ 80°C, 보관온도: -45℃ ~ 85℃ |
| - 습도 | 5% ~ 95% (이슬이 맺히지 않을 것) | |
| - 소비전력 | SFC300-SCS : 4.7W, SFC300-SCM : 5.4W, SFC300-SCS2/SCM2 : 5.2W | |
| - 설치방법 | DIN-Rail, Panel mounting | |
| 입력전원 | DC 12 ~ 48V(터미널블럭), 극성 보호회로 | |
| 크기 | 42mm(W) x 87mm(D) x 113mm(H) |
모 델 명 | 사 양 |
| SFC300-SCM | 광 1포트(멀티모드, 2km) + TP 4포트(10/100Mbps, 100m), -40~80℃ |
| SFC300-SCS | 광 1포트(싱글모드, 20km) + TP 4포트(10/100Mbps, 100m), -40~80℃ |
| SFC300-SCSWA | 광 1포트(싱글모드, 20km, WDM) + TP 4포트(10/100Mbps, 100m), -40~80℃ |
| SFC300-SCSWB | 광 1포트(싱글모드, 20km, WDM) + TP 4포트(10/100Mbps, 100m), -40~80℃ |
| SFC300-SCM2 | 광 2포트(멀티모드, 2km) + TP 4포트(10/100Mbps, 100m), -40~80℃ |
| SFC300-SCS2 | 광 2포트(싱글모드, 20km) + TP 4포트(10/100Mbps, 100m), -40~80℃ |
| SFC300-SCSW2/A | 광 2포트(싱글모드, 20km, WDM) + TP 4포트(10/100Mbps, 100m), -40~80℃ |
| SFC300-SCSW2/B | 광 2포트(싱글모드, 20km, WDM) + TP 4포트(10/100Mbps, 100m), -40~80℃ |
