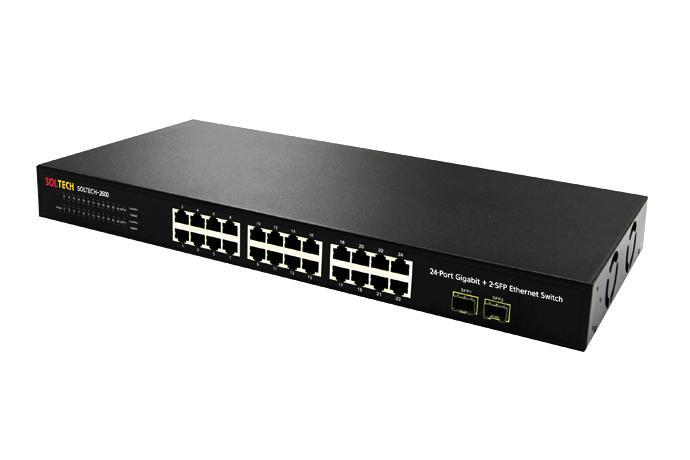

[Discontinued] Unmanaged Gigabit Switch

[Discontinued] Unmanaged Gigabit Switch

Model Name

SOLTECH-2600

Series

Discontinued

View AllView All Series

Data

SOLTECH-2600 Brochure

Manufacturer information

SOLTECH

Optical communication network equipment supplier, Optical hub, Optical converter, Optical modem, Optical link, Optical cable and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

SOLTECH

Brand

SKU

36654

Product Name

[Discontinued] Unmanaged Gigabit Switch

Model Name

SOLTECH-2600

Size

Weight

Product Details

24-Ports 10/100/1000Mbps TP + 2-SFP Slots

- 24-Ports 10/100/1000Mbps TP
- 16K MAC Address
- Full-duplex mode IEEE802.3x flow control
- 9216 bytes jumbo frame packet
- 2-SFP Slots 1000Mbps
- Provide Diagnostic LED Indications
- Auto MDI-X TP Port and Auto-Negotiation
- Internal power supply
- 19” Rack Type

Technology	- standard	IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az
Interface	- Network Media(Cable)	10Mbps-T: TP category 3, 4, 5 cable (Max.100m) EIA/TIA-568 100Ù STP (Max.100m) 100Mbps-T: TP category 5, 5e cable (Max.100m) EIA/TIA-568 100Ù STP (Max.100m) 1000Mbps-T: TP category 5e, 6 cable (Max.100m)
	- SFP Slots	2-SFP Slots 1000Mbps, LC Connector Multi mode : 62.5/125㎛(220m), Single mode : 9/125㎛(~100km)
	- RJ45 Ports	2-SFP10/100/1000Mbps TP, Auto-Negotiation Ports
	- LED Indicators	Link/Act: Green, 1000Mbps: Green, SFP: Green, Power: Green
Performance	- Transfer Method	Store-and-Forward
	- Switching Capacity	52G
	- MAC Address	Automatically learning, automatically Update 16K Address table
	- Frame Filtering and Forward Rate	10Mbps: 14880pps, 100Mbps:148800pps, 1000Mbps: 1488000pps
	- Power Consumption	Max. 20 watts
Environmental	- Temperature	Operation: 0°C ~40°C, Store: -40°C ~ 70°C
Environmental	- Humidity	5% ~ 90% (Non-condensing)
Power Supply	- Input Voltage	AC 100V ~ 240V, 50/60Hz (Internal Power Supply)
Mechanical	- Dimensions	440mm(W) x 205mm(D) x 44mm(H), 19" metal case

Model Name	Description
SOLSTECH-2600	24-Ports 10/100/1000Mbps TP + 2-SFP Slots, Unmanagement Gigabit Ethernet Switch
SFP-SX	SFP(1.25Gbps) Module, Multi-mode, 220/550m, 850nm, LC Type
SFP-LX	SFP(1.25Gbps) Module, Single-mode, 20Km, 1310nm, LC Type
