Manufacturer
SOLTECH
Brand
-
SKU
36701
Product Name

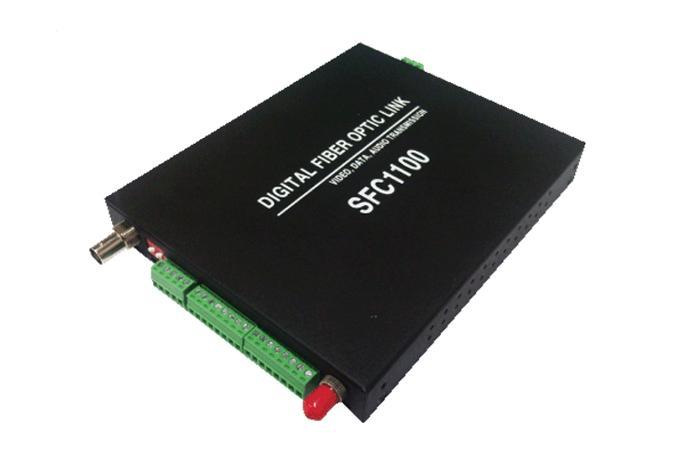

[Discontinued] CCTV Fiber Optic Link
Model Name
SFC1100-1V1D
Size
-
Weight
-
Product Details
1비디오, 1데이터 신호를 1개의 Fiber를 통하여 장거리 전송
- 싱글모드 및 멀티모드 동시 지원
- 1비디오, 1데이터 신호를 1개의 Fiber를 통하여 장거리 전송
- 10-bit 비디오 압축 방식 전송
- RS232 및 RS485/422 방식의 시리얼 통신 지원
- 고품질의 음성신호 지원
- 비디오/광포트 원격 모니터링(option)
- Power, Video, Data In/Out, Fiber Link 상태 표시 LED
- Surface Mount Technology
- Low power consumption
- 단독형 및 1U/4U 19”Rack 모듈형 지원
| 비디오 | 채널수 | 방식 | 대역폭(-3db) | 입력범위 | 출력범위 | |
| 1 | PAL/NTSC | 8MHz | 0.35~2Vpp | 1Vp-p | ||
| Encoding | Differential gain | Differential phase | 신호대잡음비 | 커넥터 타입 | ||
| 10bit | ≤1% | ≤ 1˚ | ≥63dB | BNC 75Ω | ||
| 데이터 | 채널수 | 통신방식 | Data Rate | Data Format | 운영방식 | 커넥터 타입 |
| 1 | RS232 or RS422/485 | DC to 100Kbps | NRZ, RZI, Manchester | 2선식 또는 4선식 지원 | TB 5 ~ TB 8 | |
| Optical | 파장 | 광케이블 타입 | Budget(system) | 광출력 | 수신감도 | 커넥터 타입 |
| 1310/1550nm | Single Mode, Multi Mode | 12dB | -5~-12dBm | -35dBm | ST/PC | |
| 동작환경 | 단독형 | 랙타입 | 전원 | 동작온도 | 습도 | 소비전력 |
| 4W | 4W | DC 2V/1.5A | -20°C ~ 70°C | 0% ~ 95% | 4.9W | |
| 크기 | 단독형 : 147.6mm(W) x 180.6mm(D) x 25.3mm(H) 2.0kg, MINI : 93.1mm(W) x 71.14mm(D) x 26mm(H) | |||||
모델명 | 사 양 |
| SFC1100-1V | Fiber: 1310/1550nm, BNC 75Ω Video ST Type, 2km~20km |
| SFC1100-1V1D | Fiber: 1310/1550nm, BNC 75Ω Video and TB5 Data to ST Type, 2km~20km |
| SFC1100-1V1A | Fiber: 1310/1550nm, BNC 75Ω Video ST Type, 1CH Audio, 2km~20km |
| SFC1100-1V1D1A | Fiber: 1310/1550nm, BNC 75Ω Video, TB5 Data, TB8 Audio to ST Type, 2km~20km |
| SFC1100-1V-MINI | Fiber: 1310/1550nm, BNC 75Ω Video ST Type, 2km~20km, |
| SFC1100-1V1D-MINI | Fiber: 1310/1550nm, BNC 75Ω Video and TB5 Data to ST Type, 2km~20km, TX : SC MINI, RX : ST Stand Alone |
| SFC1100-1A | Fiber: 1310/1550nm, 1CH Audio, 2km~20km |
| SFC1100-1D | Fiber: 1310/1550nm, 1CH Data, 2km~20km |
| SFC1100-1U | 4 Slot Chassis, 19" Rack 장착가능 |
| SFC1100-4U | 16 Slot Chassis, 19" Rack 장착가능(Option: 전원 이중화) |
| ※ Option Module | |
| AUDIO Module | 2CH AUDIO 모듈 추가 가능 |
| DATA Module | 1CH 데이타 모듈(RS485 또는 RS232 추가시, 2CH 데이타 모듈 추가 가능) |
| CONTACT Closure | 2CH C.C 모듈 추가 가능 |
