Manufacturer
SOLTECH
Brand
-
SKU
36708
Product Name

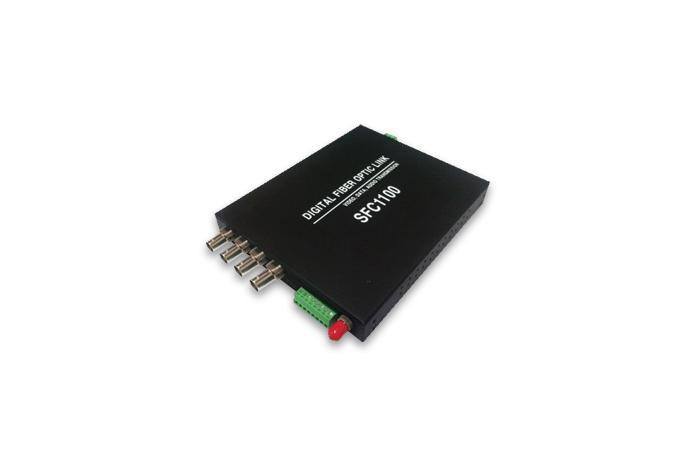

[Discontinued] CCTV Fiber Optic Link
Model Name
SFC1100-4V
Size
-
Weight
-
Product Details
Transmits Video(4CH) over 1-Fiber
- Transmits 4Video, 1-Audio and 1-Data over 1-Fiber
- 10bit Video processing
- Video Input with AGC(Automatic Gain Control)
- Power, Video Presence, Data In/Out Fiber Status Sign on LED
- Support Stand-along and Rack-mount type
- No in-field Electrical Optical Adjustments Required
- Video/Fiber Remote Monitoring
| VIDEO | Video Format | Input level | Output level | Band width(-3db) | ||
| PAL/NTSC | 0.5~2Vpp | 1Vp-p | 8Mhz | |||
| Differential gain | Differential phase | SNR | Connector Type | |||
| ≤1% | ≤1 | ≥63dB | BNC 75Ω | |||
| DATA | Data Interface | Data Rate | Data Format | Operating Model | Connector Type | |
| RS232 or RS422/485 | DC to 100kb/s | NRZ, RZI, Manchester | Simplex or Full duplex | TB 5~ TB 8 | ||
| AUDIO | IN | Harmonic distortion | Band width(-3db) | |||
| Single Mode | ≤1% | 20~15KHz | ||||
| Input power | Encoding | SNR | Connector Type | |||
| -35dBm | 24bit | ≥70dB | TB 8 | |||
| Optical | Wave-length | Fiber Type | Budget(system) | Out level | Input power | Connector Type |
| 1310/1550nm | Single Mode, Multi Mode | 12dB | -5~-12dBm | -35dBm | ST | |
| Power Environmental | Stand-alone | Rack-mount | Power adaptor | Operating Temp | Humidity | |
| 4W | 4W | 12V DC/1.5A | -20°C ~ 70°C | 0% ~ 95% | ||
| Mechanical | SFC1100-1V/2V/4V : 147.6mm(W) x 180.6mm(D) x 25.3mm(H), 2kg SFC1100-8V : 147.6mm(W) x 180.6mm(D) x 50.6mm(H) | |||||
Model Name | Description |
| SFC1100-2V | Fiber: 1310/1550nm, 2CH BNC 75Ω Video ST Type, 2km~20km |
| SFC1100-4V | Fiber: 1310/1550nm, 4CH BNC 75Ω Video ST Type, 2km~20km |
| SFC1100-8V | Fiber: 1310/1550nm, 8CH BNC 75Ω Video ST Type, 2km~20km |
| SFC1100-1U | 4 Slot Center, 19" Rack, 4kg |
| SFC1100-4U | 16 Slot Center, 19" Rack, 10kg |
| ※ Option Module | |
| Audio Module | 20~15KHz, 24bit, -35dBm, 2km~20km, Terminal Block Type, 2CH support |
| Data Module | RS232 or RS422/485, DC to 100Kb/s, 2wire or 4wire, 1CH support |
| Contact Closure | 2CH C.C support |
